Spectrophotometer CM-M6
Spectrophotometer CM-M6
| Model | CM-M6 |
|---|---|
| Illumination/viewing system | 45° illumination: -15° / 15° / 25° / 45° / 75° / 110° aspecular viewing angles with double-path technology |
| Detector | Dual 40-element silicon photodiode arrays |
| Spectral separation device | Linear variable filter |
| Wavelength range | 400 to 700 nm |
| Wavelength pitch | 10 nm |
| Photometric range | 0 to 600 %; Output/display resolution: 0.01% |
| Light source | High-CRI white LED |
| Measurement time | Approx. 4.5 s; Minimum measurement interval: Approx. 5 s |
| Battery performance | Approx. 1500 measurement at 10-sec. intervals from fully charged battery |
| Measurement/illumination area | Ø 6 mm / Ø 12 mm |
| Repeatability | Colorimetric value: Standard deviation within ΔE*ab 0.05
(when a white calibration plate is measured 30 times at 10-second intervals after white calibration) |
| Inter-Instrument Agreement | Within ΔE*ab 0.2
(Averaged for 12 BCRA Series II tiles compared to values measured with a master body at 23℃) |
| Interface | USB2.0; Bluetooth®: optional |
| Display | 3.5-inch TFT Color LCD |
| Display data | Colorimetric data: L*a*b*, L*C*h Color difference data: Δ(L*a*b*), Δ(L*C*H*), ΔE*ab, CMC(l:c), ΔE94 (CIE1994), ΔE00(CIE DE2000), DIN6175-2 Other data display: MI, FF value, line graph, pass/fail judgement |
| Observer condition | 2° and 10° colorimetric standard observer |
| Illuminant condition | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12
(simultaneous evaluation with two light sources possible) |
| Display languages | English, German, French, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Chinese (simplified), Japanese |
| Operating temperature/humidity range | 0 – 40°C; relative humidity 85% or less (at 35°C) with no condensation |
| Storage temperature/humidity range | -20 – 45°C; relative humidity 85% or less (at 35°C) with no condensation |
| Power | Removable Lithium-ion rechargeable battery or AC Adapter |
| Dimensions (W × H × D) | Approx. 152 × 239 × 81 mm |
| Weight | Approx. 1.1 kg (including battery) |
| Standard accessories | White calibration plate, USB cable, AC adapter, Lithium-Ion battery pack, Zero Calibration Box |
| Optional Accessories | Charging stand for spare batteries; spare battery packs, Bluetooth® module
SpectraMagic™DX (software) |
Description
Spectrophotometer CM-M6

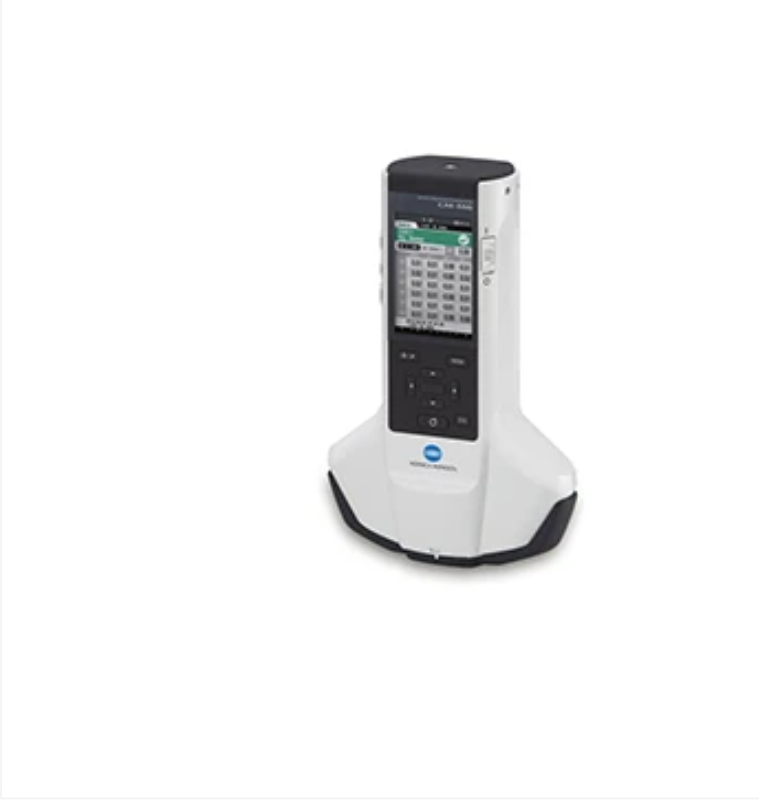

The Konica Minolta Multi-Angle Spectrophotometer CM-M6 is an innovative color measurement instrument that is designed to provide quick and precise color measurement of complex metallic and pearlescent paints. It is an ideal tool for professionals in industries like automotive, consumer electronics, etc., who need to ensure that the colors of their products meet high standards of quality and consistency.
One of the standout features of the Multi-Angle Spectrophotometer CM-M6 is its patented double-path illumination system. This system incorporates a 45° illumination and six viewing angles (-15°/15°/25°/45°/75°/110°) from two sides, which enables the color measurement instrument to deliver accurate and stable color measurements on curved surfaces (R=300 radius). This feature is especially important when measuring the color of automotive parts, such as side mirrors, which have complex shapes. In addition to its double-path illumination system, the Multi-Angle Spectrophotometer CM-M6 also boasts a small measuring area of Ø6mm, which makes it capable of measuring the color of small surfaces or parts such as automotive shark fin antennas and door handles.
The Multi-Angle Spectrophotometer CM-M6 provides data in various color spaces and indexes, including color difference, FF value (Flop value), and more. The color measurement instrument comes equipped with a high-resolution back-illuminated color display that is legible even under low ambient lighting conditions. Its ergonomic design facilitates easy handling and positioning, making it suitable for repeated use over long periods of time on the production line.
