| Relative Spectral Response | Closely matches CIE Standard Observer curves X(λ), y(λ), and Z(λ) Within 6%(f1’) of the CIE spectral luminous effeciency V(λ) |
| Cosine response(f2) | Ev: Within 3% |
| Receptor | Silicon photocell |
| Measuring function | Tristimulus values:XYZ Chromaticity : Ev xy, Ev u’v’ Correlated color temperature: Ev, Tcp, Δuv Color difference: Δ(XYZ), Δ(Ev, xy), Δ(Ev u’v’), ΔEv Δu’v’ |
| Other function | User calibration function, Data hold function, Multi-point measurement(2 to 30 points) |
| Measuring range | 0.1∼99,990lx, 0.01∼9,999 fcd(Chromaticity:5 lx, 0.5 fcd or above) in four automatically selected ranges(lx or fcd is swichable) |
| Accuracy | Ev: ±2%±1digit of displayed value xy: ±0.002(800lx, standardilluminant A measured) |
| Repeatability | Ev: 0.5%+1 digit(2σ) xy: ±0.0005 |
| Temperature drift | Ev: ±3%±1digit of displayed value, xy: ±0.003 |
| Humidity drift | Ev: ±3%±1digit of displayed value, xy: ±0.003 |
| Response time | 0.5 seconds (each measurement) |
| Digital output | USB 2.0 full-speed |
| Display | 4 Significant-digit LCD with back-light illumination |
| Operating temperature/ Humidity range | -10 to 40°C, relative humidity 85% or less (at 35°C) with no condensation |
| Storage temperature/ Humidity range | -20 to 55°C, relative humidity 85% or less (at 35°C) with no condensation |
| Power source | 2 AA-size batteries/AC adapter (optional) |
| Battery life | 72 hours or longer (when alkaline bateries are used) in continuous measurement |
| Dimensions | 69x174x35mm |
| Weight | 215g(7.6 oz.) not including batteries |
| Standard accessories | Case T-A10, Cap T-A13, Neck Strap, batteries, Data Management Software CL-S10w, Connecting Cable T-A15 |
| Optional accessories | Recepter Head, Adapter Unit for Main Body T-A20, Adapter Unit for Receptor Head T-A21, AC Adapter AC-308(available for 1 to 10 Receptor Heads) AC Adapter AC-311(available for 1 to 30 Receptor Heads) Printer Cable T-A12, Hood CL-A11, Case CL-A10 |

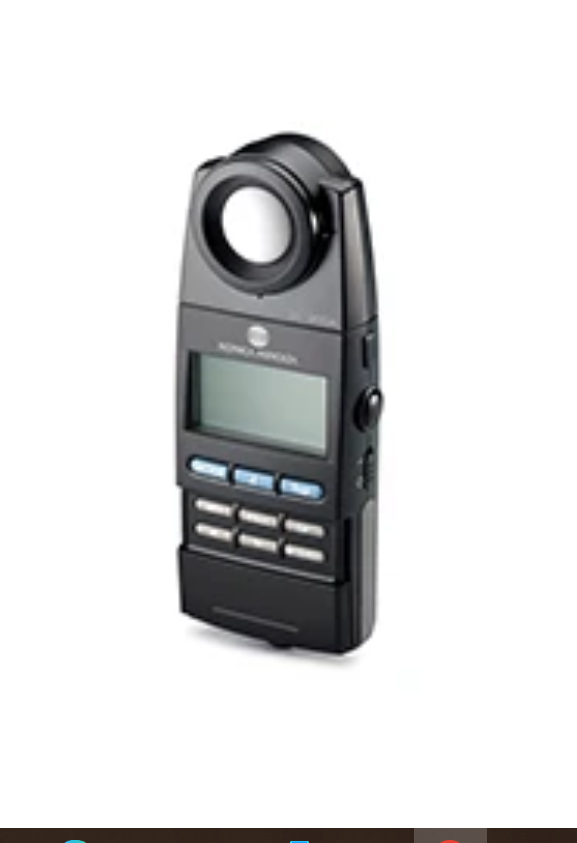

Chroma Meter CL-200A
Chroma Meter CL-200A
Description
Chroma Meter CL-200A
Professional Chroma Meter for Accurate Color, Illuminance, and Color Temperature Measurement
The Chroma Meter CL-200A is a high-precision portable color measurement instrument designed for accurate analysis of chromaticity, illuminance, correlated color temperature (CCT), and color differences. It is widely used in lighting evaluation, display testing, LED development, quality control, research laboratories, and industrial applications where precise color and light measurement are essential.
The CL-200A Chroma Meter provides fast, reliable, and repeatable measurement results, helping manufacturers, lighting designers, engineers, and researchers evaluate light sources with confidence. Its compact design, advanced measurement capabilities, and user-friendly operation make it an ideal solution for both field and laboratory applications.
Whether you are testing LED lighting, evaluating display performance, verifying color consistency, or conducting lighting research, the CL-200A delivers accurate data to support quality control and product development.
Why Choose the CL-200A Chroma Meter?
Accurate measurement of color and light characteristics is critical for modern lighting systems, display technologies, and industrial applications. Small variations in color temperature or chromaticity can significantly affect product performance and user experience.
The CL-200A Chroma Meter helps organizations:
- Measure chromaticity accurately
- Evaluate illuminance levels
- Analyze color temperature
- Verify lighting consistency
- Improve product quality
- Support quality assurance programs
- Meet industry lighting standards
Its portable design and advanced optical technology make it a trusted choice for professionals across multiple industries.
Key Features of CL-200A Chroma Meter
Accurate Chromaticity Measurement
The CL-200A provides precise chromaticity measurements, helping users evaluate color characteristics and maintain consistent lighting performance.
High-Precision Illuminance Measurement
The instrument accurately measures illuminance levels, enabling effective assessment of lighting conditions and product performance.
Correlated Color Temperature (CCT) Analysis
The meter calculates color temperature quickly and accurately, making it suitable for lighting design, LED development, and quality control applications.
Fast Measurement Speed
Rapid measurement performance improves productivity and supports efficient testing workflows.
Portable and Lightweight Design
The compact design allows convenient use in laboratories, production facilities, and field environments.
User-Friendly Operation
An intuitive interface simplifies measurement setup, data collection, and analysis.
Reliable Measurement Performance
The CL-200A delivers stable and repeatable results, ensuring confidence in testing and quality assurance activities.
Wide Light Source Compatibility
The instrument is suitable for measuring:
- LED lighting
- OLED lighting
- LCD displays
- Backlight systems
- Fluorescent lamps
- Automotive lighting
- Architectural lighting
- Specialized light sources
Applications of CL-200A Chroma Meter
LED Lighting Measurement
The CL-200A is widely used for:
- LED lamp testing
- LED module evaluation
- Product development
- Manufacturing quality control
- Lighting performance verification
Accurate color and illuminance measurements help improve product consistency and customer satisfaction.
Benefits for LED Manufacturers
- Verify color temperature
- Improve chromaticity consistency
- Enhance product quality
- Reduce manufacturing variations
Display Testing and Evaluation
Manufacturers use the CL-200A for:
- LCD display testing
- OLED display measurement
- Display color evaluation
- Backlight quality assessment
- Product performance verification
Reliable measurements ensure high-quality visual performance.
Architectural and Commercial Lighting
Lighting professionals rely on the CL-200A for:
- Building lighting analysis
- Office lighting evaluation
- Retail lighting optimization
- Hospitality lighting projects
- Indoor environment assessment
Accurate data helps create comfortable and energy-efficient lighting environments.
Automotive Lighting Applications
The CL-200A supports testing of:
- Vehicle interior lighting
- Ambient lighting systems
- Dashboard illumination
- Automotive LED components
Precise color and illuminance measurements help maintain product quality and consistency.
Research and Development Laboratories
Researchers use the CL-200A for:
- Lighting technology studies
- Optical research
- Product innovation
- Performance evaluation
- Scientific analysis
The instrument provides dependable measurement data for advanced research applications.
Quality Control and Production Testing
The CL-200A helps manufacturers:
- Monitor product consistency
- Verify production quality
- Reduce product defects
- Improve process control
Accurate measurements support efficient quality management systems.
Benefits of Using the CL-200A Chroma Meter
Improve Lighting Quality
Accurate measurements help optimize lighting performance and visual comfort.
Enhance Product Consistency
Reliable chromaticity and color temperature data ensure uniform product quality.
Reduce Production Errors
Early identification of color variations helps minimize waste and rework.
Increase Testing Efficiency
Fast measurement speeds improve productivity and streamline testing operations.
Support Regulatory Compliance
The CL-200A helps organizations meet lighting specifications and industry requirements.
Improve Customer Satisfaction
Consistent lighting performance enhances product reliability and user experience.
Industries Served
The CL-200A Chroma Meter is trusted by professionals in:
- LED Lighting Manufacturing
- Display Manufacturing
- Consumer Electronics Industry
- Automotive Industry
- Architectural Lighting Design
- Research Laboratories
- Quality Control Laboratories
- Industrial Manufacturing
- Educational Institutions
- Optical Engineering Facilities
Technical Advantages
- High-precision chromaticity measurement
- Accurate illuminance analysis
- Correlated color temperature calculation
- Fast measurement capability
- Portable and lightweight design
- Excellent repeatability
- User-friendly operation
- Reliable field and laboratory performance
- Wide application flexibility
- Industry-standard measurement support
How the CL-200A Improves Lighting Quality Control
The CL-200A enables manufacturers and lighting professionals to evaluate light quality quickly and accurately. By measuring chromaticity, illuminance, and color temperature, users can verify product performance and maintain consistent production standards.
Organizations can use the instrument to:
- Improve lighting quality
- Enhance product development
- Reduce production variation
- Optimize lighting systems
- Ensure regulatory compliance
- Strengthen quality assurance programs
These capabilities make the CL-200A an essential tool for color and light measurement applications.
