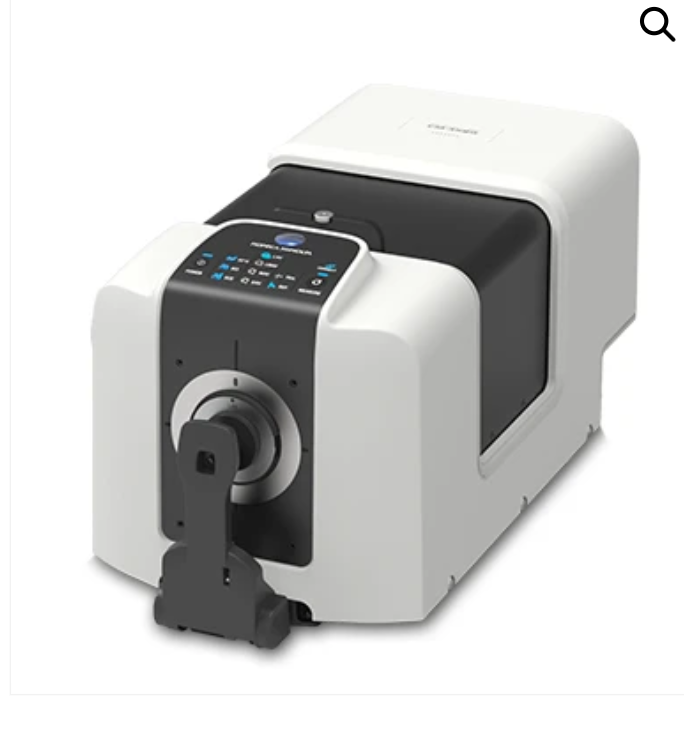

Spectrophotometer CM-36dG
Spectrophotometer CM-36dG
Spectrophotometer CM-36dG
| Color | Illumination/ Viewing System | Reflectance:
di:8°, de:8° (diffused illumination, 8° viewing), SCI (Specular Component Included) / SCE (Specular Component Excluded) switchable. Conforms to CIE No.15, lSO7724/1, ASTM E1164, DIN 5033 Teil7, and JIS Z 8722 condition c standards |
| Transmittance:
di:0°, de:0° (diffused illumination, 0° viewing) Conforms to CIE No.15, ASTM E1164, DIN 5033 Teil7, and JIS Z 8722 condition g standards |
||
| Integrating Sphere Size | Ø152 mm (6 inches) | |
| Detector | Dual 40-element silicon photodiode arrays | |
| Spectral Separation Device | Diffraction grating | |
| Wavelength Range | 360 to 740 nm | |
| Wavelength Pitch | 10 nm | |
| Half Bandwidth | approx. 10 nm | |
| Reflectance Range | 0 to 200% | |
| Resolution: 0.01% | ||
| Light Source | 3 Pulsed xenon lamps (2 with UV cut filters) | |
| Illumination / Measurement Area | LAV: Ø30.0 mm / Ø25.4 mm
LMAV: Ø20.0 mm / Ø16.0 mm MAV: Ø11.0 mm / Ø8.0 mm SAV: Ø7.0 mm / Ø4.0 mm Trans: Ø24.0 mm / Ø17.0 mm |
|
| Repeatability | Colorimetric values: Standard deviation within ΔE*ab 0.02
Spectral reflectance: Standard deviation within 0.1% (When a white calibration plate is measured 30 times at 10-second intervals after white calibration) |
|
| Inter-Instrument
Agreement |
Within ΔE*ab 0.12
(Based on average for 12 BCRA Series II color tiles; LAV/SCI. Compared to values measured with master body under Konica Minolta standard measurement conditions) |
|
| UV Setting | 100% / 0% / Adjusted
Instantaneous numerical adjustment of UV with no mechanical filter movement required*1; 400 nm and 420 nm UV cutoff filters |
|
| Gloss | Measurement Angle | 60° |
| Light Source | White LED | |
| Detector | Silicon photodiode | |
| Measurement Range | 0 to 200 GU | |
| Resolution: 0.01 GU | ||
| Measurement Area | MAV (LAV/LMAV/MAV color measurement area):
Ø10.0 x 8.0 mm ellipse |
|
| SAV (SAV color measurement):
Ø3.0 mm |
||
| Repeatability | 0 to 10 GU: within 0.1 GU
10 to 100 GU: within 0.2 GU 100 to 200 GU: 0.2% (When measured 30 times at 10-second intervals) |
|
| Inter-Instrument Agreement | 0 to 10 GU: ±0.2 GU
10 to 100 GU: ±0.5 GU (MAV. Compared to values measured with master body under Konica Minolta standard conditions) |
|
| Geometry | JIS Z 8741 (MAV), JIS K 5600, ISO 2813, ISO 7668 (MAV), ASTM D523-08, ASTM D2457-13, and DIN 67530 | |
| Measurement Time | Approx. 3.5 second (SCI+SCE measurement)
Approx. 4 second (SCI+SCE+Gloss measurement) Approx. 2.5 second (Transmittance) Approx. 3 second (UV-cut/UV-adjusted; SCI or SCE) |
|
| Minimum Interval Between Measurements | Approx. 4 second (SCI+SCE measurement)
Approx. 4.5 second (SCI+SCE+Gloss measurement) Approx. 3 second (Transmittance) Approx. 4 second (UV-cut/UV-adjusted; SCI or SCE) |
|
| Sample Viewer Function | Using internal camera
(Image viewable/copiable using optional software such as SpectraMagic NX software Ver. 3.2 or later) |
|
| Internal Performance Check*2 | WAA (Wavelength Analysis & Adjustment) Technology | |
| Interface | USB 2.0 | |
| Target Mask Auto Detection | Yes | |
| Power | Dedicated AC adapter | |
| Operating temperature / humidity range | 13 to 33°C, Relative humidity: 80% or less (at 35°C) with no condensation | |
| Storage temperature / humidity range | 0 to 40°C, Relative humidity: 80% or less (at 35°C) with no condensation | |
| Size (W x H xD) | Approx. 248 x 250 x 498 mm | |
| Weight | Approx. 8.4 kg | |
Description
Spectrophotometer CM-36dG
High-Precision Spectrophotometer for Advanced Color Measurement and Quality Control
The CM-36dG Spectrophotometer is a premium color measurement instrument designed for accurate color analysis, color matching, and quality control. It combines advanced spectrophotometric technology with integrated gloss measurement capabilities, making it an ideal solution for industries that require precise color and appearance evaluation.
The CM-36dG Spectrophotometer delivers reliable and repeatable measurement results for a wide range of materials, including plastics, paints, coatings, textiles, packaging materials, automotive components, and consumer products. Its advanced optical system helps manufacturers maintain color consistency, improve product quality, and meet strict industry standards.
Whether used in research laboratories, quality control departments, or production facilities, the CM-36dG provides the accuracy and efficiency needed for modern color management applications.
Why Choose the CM-36dG Spectrophotometer?
In today’s competitive manufacturing environment, maintaining consistent color quality is essential. Even small color variations can affect product appearance, customer satisfaction, and brand reputation.
The CM-36dG Spectrophotometer helps manufacturers:
- Achieve accurate color measurements
- Monitor product consistency
- Reduce color-related defects
- Improve production efficiency
- Ensure compliance with quality standards
- Simplify color approval processes
By combining color and gloss measurement in a single instrument, the CM-36dG offers a comprehensive solution for appearance evaluation and quality assurance.
Key Features of CM-36dG Spectrophotometer
High-Accuracy Color Measurement
The CM-36dG delivers precise color measurement results with excellent repeatability and reproducibility. This ensures reliable data for quality control and product development.
Integrated Gloss Measurement
The built-in gloss sensor allows simultaneous evaluation of color and surface appearance. This feature helps manufacturers achieve more accurate product assessments.
Advanced Spectral Analysis
The instrument captures detailed spectral data across the visible spectrum, providing comprehensive color information for analysis and reporting.
Exceptional Repeatability
The CM-36dG provides highly consistent measurements, reducing variability between operators and measurement locations.
Fast Measurement Performance
Quick measurement cycles improve productivity and support high-volume quality control operations.
User-Friendly Interface
An intuitive operating system simplifies instrument setup, measurement procedures, and data management tasks.
Wide Material Compatibility
The spectrophotometer can measure various materials, including:
- Plastics
- Paints
- Coatings
- Textiles
- Paper
- Packaging materials
- Automotive parts
- Consumer products
Reliable Quality Control
The CM-36dG helps manufacturers identify color deviations early, reducing waste and improving production efficiency.
Applications of CM-36dG Spectrophotometer
Paint and Coatings Industry
The CM-36dG supports:
- Paint color verification
- Coating quality inspection
- Batch-to-batch consistency control
- Color formulation validation
- Surface appearance evaluation
Accurate color and gloss measurements help maintain product quality and customer satisfaction.
Plastics Industry
Manufacturers use the CM-36dG for:
- Plastic color measurement
- Raw material inspection
- Production quality control
- Color consistency verification
- Surface finish evaluation
Automotive Industry
The spectrophotometer is ideal for:
- Interior component inspection
- Exterior paint quality control
- Supplier quality assurance
- Color matching applications
- Appearance verification
Printing and Packaging Industry
The CM-36dG helps ensure:
- Accurate color reproduction
- Brand color consistency
- Packaging quality control
- Print verification
- Surface appearance assessment
Textile Industry
Textile manufacturers rely on the CM-36dG for:
- Fabric color measurement
- Dye consistency evaluation
- Color matching processes
- Production quality assurance
Consumer Goods Manufacturing
The instrument supports:
- Product appearance evaluation
- Color consistency monitoring
- Quality assurance programs
- Product development activities
Research and Development Laboratories
R&D teams use the CM-36dG for:
- Material analysis
- Color research
- Product innovation
- Process optimization
- Advanced color studies
Benefits of Using the CM-36dG Spectrophotometer
Improve Color Consistency
Accurate measurements help maintain uniform product appearance across production batches.
Enhance Product Quality
Reliable color and gloss evaluation support superior product quality and customer satisfaction.
Reduce Production Waste
Early detection of color variations helps minimize rejects and rework costs.
Increase Productivity
Fast measurement speeds improve workflow efficiency and reduce inspection time.
Strengthen Quality Control
Objective measurement data supports better quality decisions and process control.
Support Brand Standards
The CM-36dG helps manufacturers maintain consistent brand colors across products and locations.
Optimize Manufacturing Processes
Accurate color data allows engineers to identify process variations and improve production performance.
Industries Served
The CM-36dG Spectrophotometer is widely used in:
- Paint and Coatings Manufacturing
- Plastics Processing
- Automotive Manufacturing
- Textile Production
- Printing Industry
- Packaging Industry
- Consumer Goods Manufacturing
- Research Laboratories
- Quality Control Laboratories
- Industrial Manufacturing Facilities
Technical Advantages
- High-precision spectrophotometric measurement
- Integrated gloss measurement capability
- Advanced color analysis functions
- Excellent repeatability and reproducibility
- Fast measurement performance
- User-friendly operation
- Wide application flexibility
- Reliable quality control support
- Industrial-grade performance
- Laboratory-grade accuracy
How the CM-36dG Improves Quality Control
The CM-36dG enables manufacturers to establish objective color standards and monitor production quality throughout the manufacturing process.
With accurate color and gloss measurements, organizations can:
- Detect color deviations quickly
- Maintain product consistency
- Improve supplier quality control
- Reduce customer complaints
- Ensure compliance with industry specifications
- Improve overall manufacturing efficiency
This makes the CM-36dG a valuable investment for businesses focused on quality excellence and process improvement.
