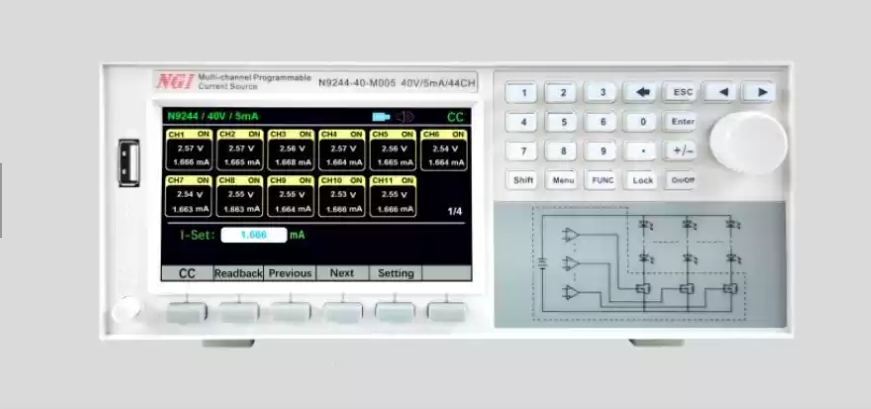

N9244 Series High Precision Multi Channel Programmable DC Power Supply

Description

The NGI N9244 Series High Precision Multi Channel Programmable DC Power Supply offers an industry-leading solution for large-scale constant current testing. This instrument delivers 44 independent channels of stable constant-current output within a compact 2U chassis. Engineers utilize the N9244 to validate Mini LED luminescent devices, LED lamp beads, and advanced semiconductor chips with absolute accuracy. Consequently, your facility significantly improves test efficiency while reducing the overall cost of production.

Instead of managing dozens of individual power supplies, your laboratory gains a massive technical advantage with the N9244. This series supports a 40V voltage specification and a 5mA constant current output per channel. Therefore, you can perform parallel testing on hundreds of LED components simultaneously using a single, integrated system.

NGI N9244 Series Technical Advantages

This power supply packs professional-grade features for demanding semiconductor R&D and quality control. It provides an incredible current resolution of 1μA and a constant current accuracy of 0.1%. Furthermore, the system eliminates leakage current entirely when in the “OFF” state. This protects sensitive LED chips from accidental electrical stress and ensures the integrity of your measurement data.

The N9244 also features a modular architecture that simplifies maintenance and future expansion. Each unit includes a bright 4.3-inch HD color screen that displays real-time readback voltage and current for 22 channels at once. Technicians can switch between channels rapidly to monitor specific test points during long-duration aging tests. Additionally, the standard computer software supports large-scale automated testing via LAN and RS232 communication.

Modern Laboratory Integration

Modern production lines require seamless data logging and standardized control protocols. Therefore, the N9244 series supports standard MODBUS protocols for easy integration into existing automated test equipment (ATE) systems. Users can carry out secondary development to tailor the testing process to specific project requirements. The unit also supports USB flash disk screenshots for rapid data storage and report generation.

When your project demands a high-density, high-precision constant current source, the NGI N9244 stands out as the premier choice. Stop settling for bulky, inefficient wiring setups that delay your production cycles. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your facility. Trust nanotech-tmi for all your NGI and high-precision LED testing requirements!
