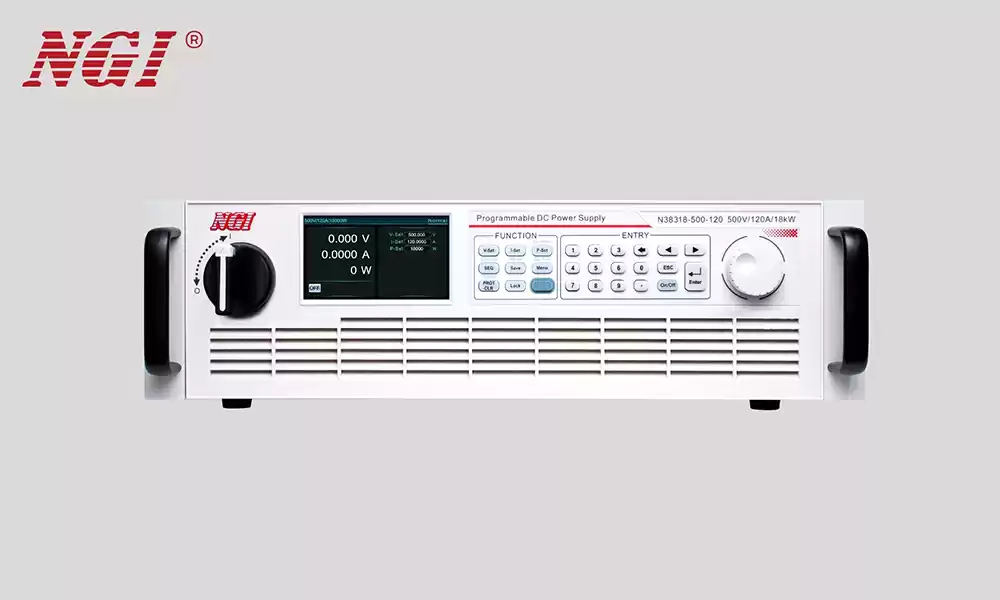

N38300 Programmable DC Power Supply(5kW~180kW)

Description

The NGI N38300 Series Programmable DC Power Supply provides a specialized, high-power solution for precision industrial testing and renewable energy R&D. Engineers utilize this wide-range instrument to simulate massive energy demands for electric vehicle (EV) components, solar inverters, and high-capacity battery packs. This specific series addresses the unique requirement of high power density by delivering up to 18kW within a standard 19-inch 3U chassis. Consequently, your facility achieves massive space savings while maintaining the ability to scale power levels up to 1.8MW through master-slave parallel expansion.

Instead of managing multiple bulky power sources, your laboratory gains a technical advantage with the N38300’s ultra-wide range output. The system maintains a high power efficiency of 93%, which significantly reduces operational heat and electricity costs during long-duration endurance tests. Therefore, you can confidently validate high-voltage power electronics and energy storage systems up to 2250V with absolute stability and safety.

NGI N38300 Technical Advantages

This industrial-grade power supply packs advanced features for demanding green energy and automotive testing cycles. It offers a unique CC & CV priority function, which allows technicians to eliminate current overshoots during high-speed transitions or battery charging scenarios. Furthermore, the unit delivers a high-speed sampling rate of 500kHz with 16-bit resolution. This level of precision ensures that your engineering team captures exact transient data points during the characterization of sensitive high-power semiconductors.

The N38300 also features a sophisticated internal resistance simulation function. Technicians program specific voltage and resistance values to replicate the electrical behavior of secondary batteries, supercapacitors, and fuel cell stacks accurately. Additionally, the unit supports complex sequence (SEQ) editing and a voltage RAMP function directly through the intuitive front-panel interface. The standard LAN and RS232 interfaces ensure seamless integration into existing automated test equipment (ATE) environments for high-throughput production.

Modern Industrial Integration

Modern testing facilities require robust connectivity and modular scalability for large-scale energy projects. Therefore, the N38300 series includes comprehensive hardware protection protocols, including OVP, OCP, LVP, and OTP, to safeguard both the instrument and the Device Under Test (DUT). It supports multiple communication protocols such as SCPI and Modbus-RTU, allowing for straightforward secondary development in complex software-controlled systems. The modular 3U design ensures the power supply fits easily into standard industrial racks for simplified system expansion.

When your project demands the highest power density and wide-range flexibility for industrial validation, the NGI N38300 stands out as the premier choice. Stop settling for low-efficiency tools that limit your scalability and increase your thermal footprint. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your high-power facility. Trust nanotech-tmi for all your NGI and high-power DC Power Supply requirements!
