NGI N83524 24 Channels Bidirectional Battery Simulator (6V/CH)

Description

The NGI N83524 24 Channels Bidirectional Battery Simulator provides an ultra-high density solution for advanced Battery Management System (BMS) and consumer electronics testing. Engineers utilize this programmable instrument to simulate up to 24 independent battery cells within a single 3U chassis. By adopting a dual-quadrant design, the N83524 handles both charging and discharging currents seamlessly. Consequently, your laboratory achieves massive space savings and reduces overall testing complexity in large-scale ATE environments.

Instead of managing dozens of individual power sources, your team gains a centralized analytical advantage with the N83524. The system allows you to connect channels in series to replicate complex battery pack configurations. Therefore, you can accurately test everything from simple mobile phone batteries to advanced energy storage systems for UAVs and electric vehicles.

NGI N83524 Technical Advantages

This battery simulator packs professional-grade features for demanding industrial R&D and production lines. It delivers an incredible voltage accuracy of 0.6mV and supports μA-level current measurements. Furthermore, the unit features a fast dynamic response time, ensuring the voltage recovery remains within 50mV during sudden load changes. This high-speed performance allows your technicians to verify the response of sensitive BMS chips under realistic operating conditions.

The N83524 also supports multiple advanced operation modes, including SOC test, SEQ test, and battery simulation. Technicians can customize the battery charge and discharge models directly through the user-friendly application software. Additionally, the optional NB108 series products enable fault simulation, including short circuits and reverse polarity tests. This ensures that your prototypes undergo comprehensive safety validation before hitting the market.

Modern Laboratory Integration

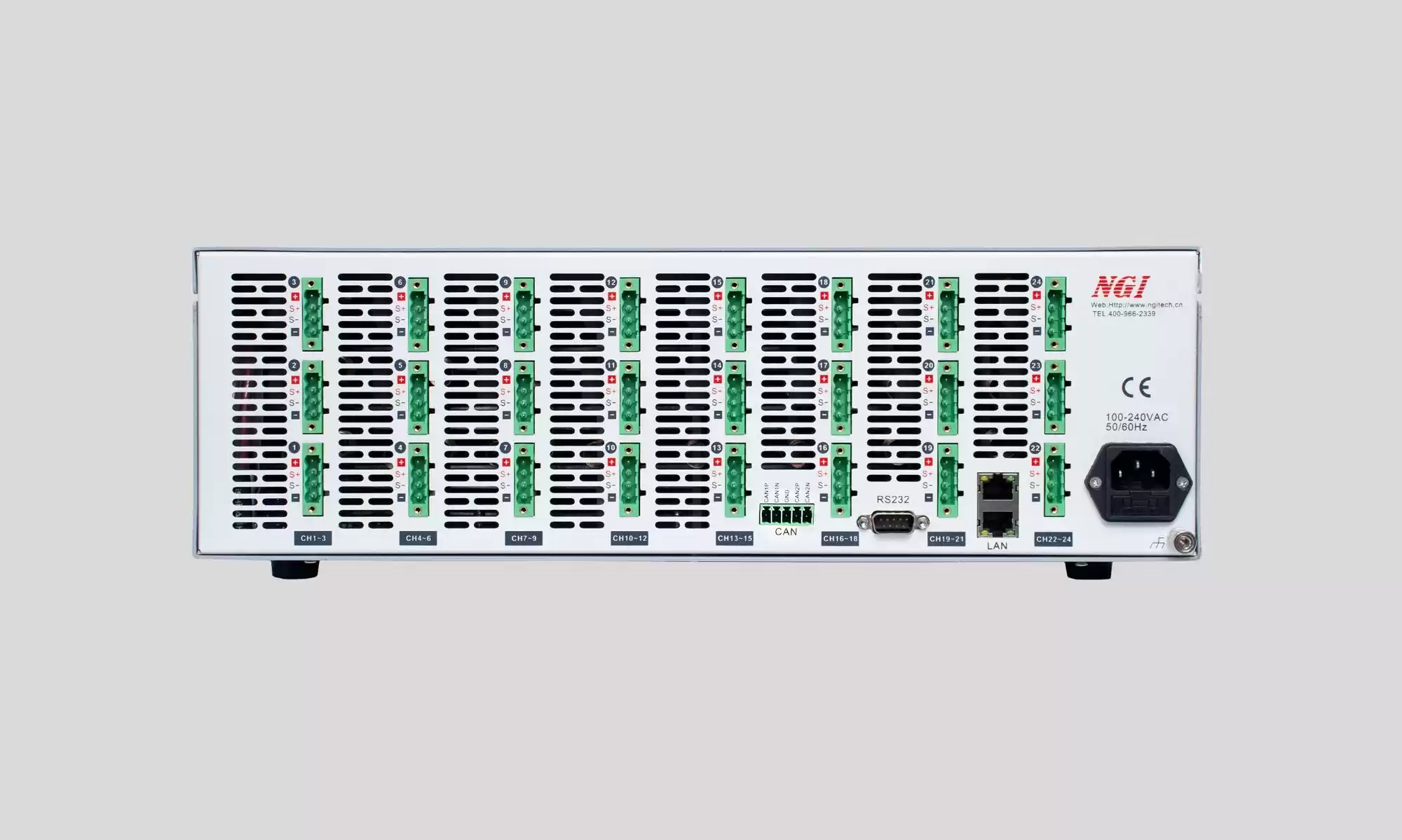

Modern testing facilities require robust connectivity and high-speed data management. Therefore, the N83524 series includes dual LAN ports, RS232, and CAN communication interfaces. This configuration supports easy cascade applications, allowing you to test battery packs with even higher cell counts. Technicians can also utilize the 4.3-inch high-definition color LCD screen for immediate local monitoring and configuration.

When your project demands a high-precision, high-density 24-channel simulator, the NGI N83524 stands out as the premier choice. Stop settling for bulky equipment that limits your testing throughput. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your 24-station test setup. Trust nanotech-tmi for all your NGI and multi-channel battery simulation requirements!
