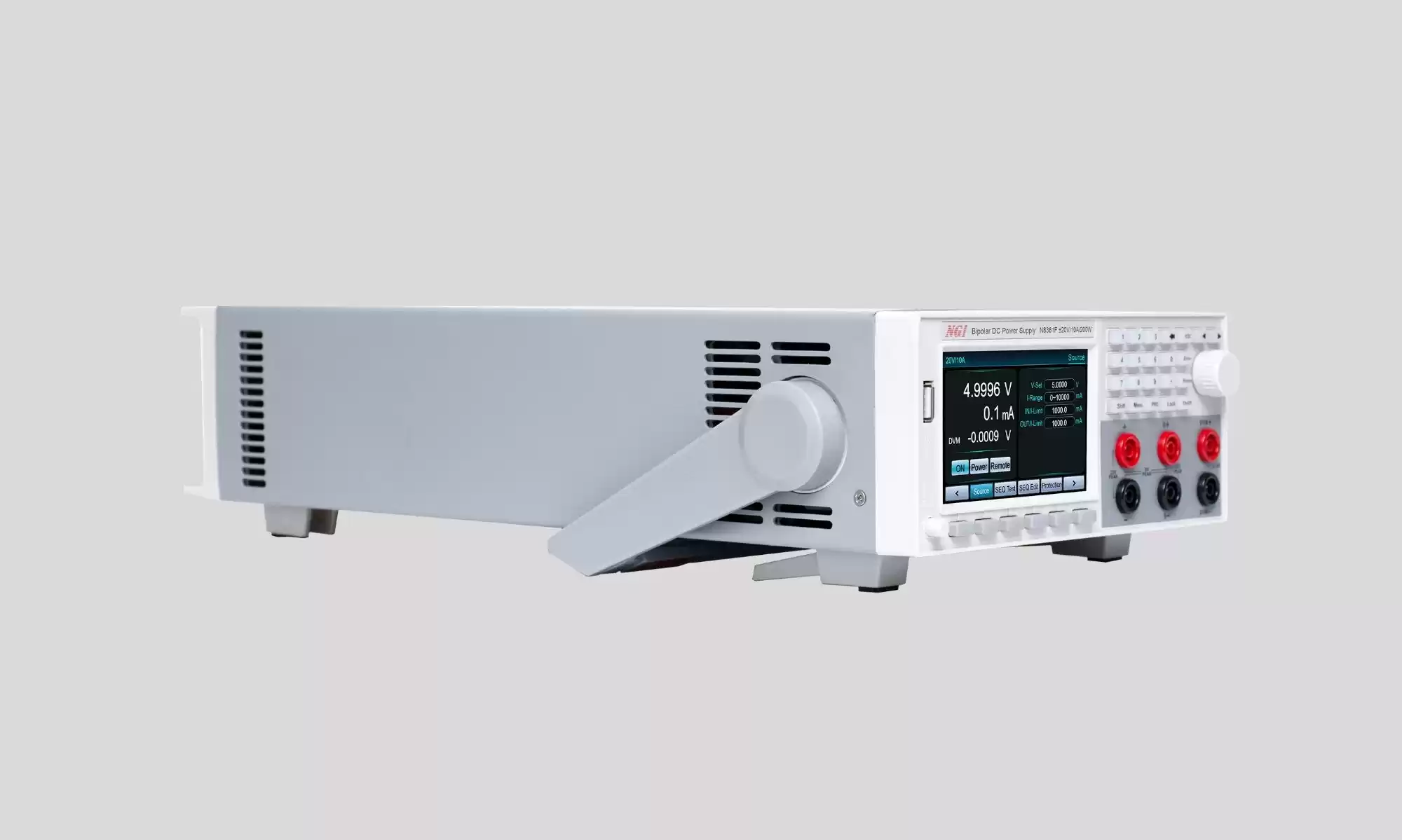

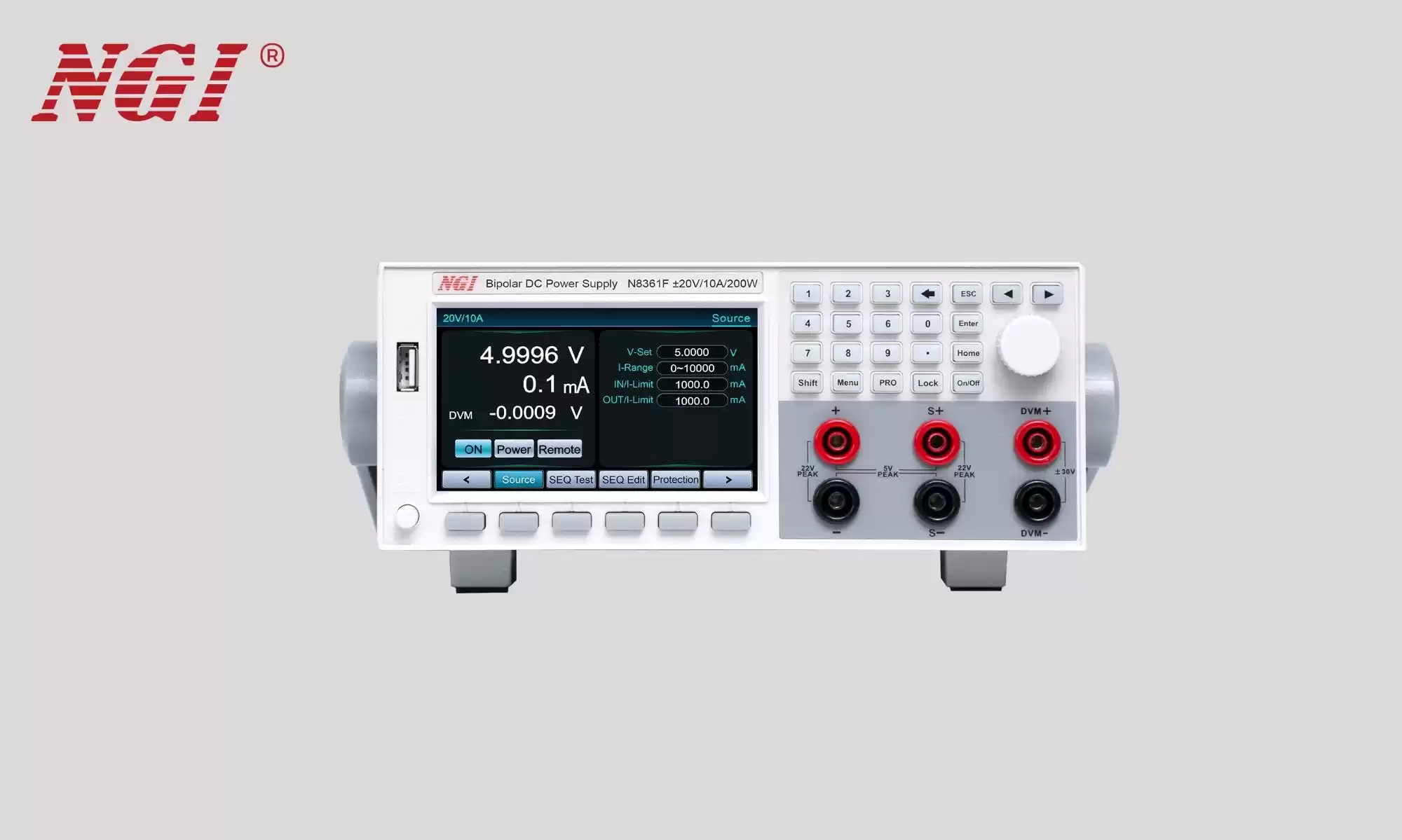

NGI N8361F Bipolar DC Power Supply (±20V/±10A) | nanotech-tmi

Description

The NGI N8361F Bipolar DC Power Supply provides a high-speed, high-precision solution for advanced electronic component and circuit testing. Engineers utilize this bipolar instrument to achieve seamless transition across all four quadrants of power operation. This model specifically targets applications requiring rapid voltage fluctuations and bidirectional current flow. Consequently, your laboratory gains a versatile tool that replicates complex real-world electrical environments with absolute signal integrity.

Instead of relying on slow, traditional power sources, your facility achieves a technical advantage with the N8361F’s ultra-fast response times. The unit delivers a voltage rise and fall time of less than 50μs. Therefore, you can accurately perform automotive ground drift tests and validate sensitive analog circuits without experiencing signal lag or distortion.

NGI N8361F Technical Advantages

This power supply packs professional-grade features for demanding R&D and production lines. It offers a voltage range of ±20V and a current range of ±10A, delivering up to 200W of total power. Furthermore, the system provides a current measurement resolution of 1μA, ensuring your technicians capture the finest details in low-power consumption tests. The built-in high-precision DVM further enhances measurement accuracy for every test cycle.

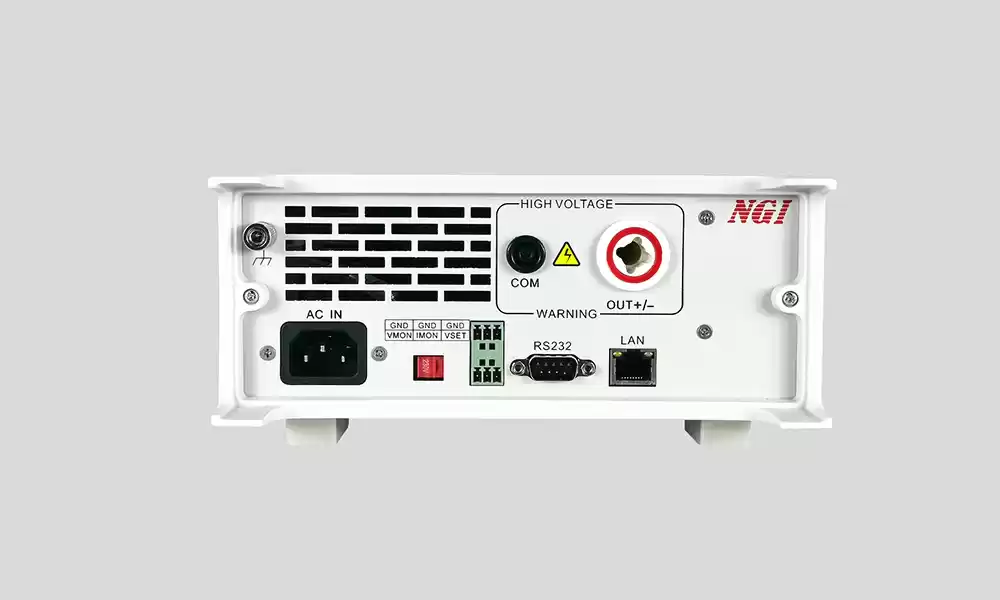

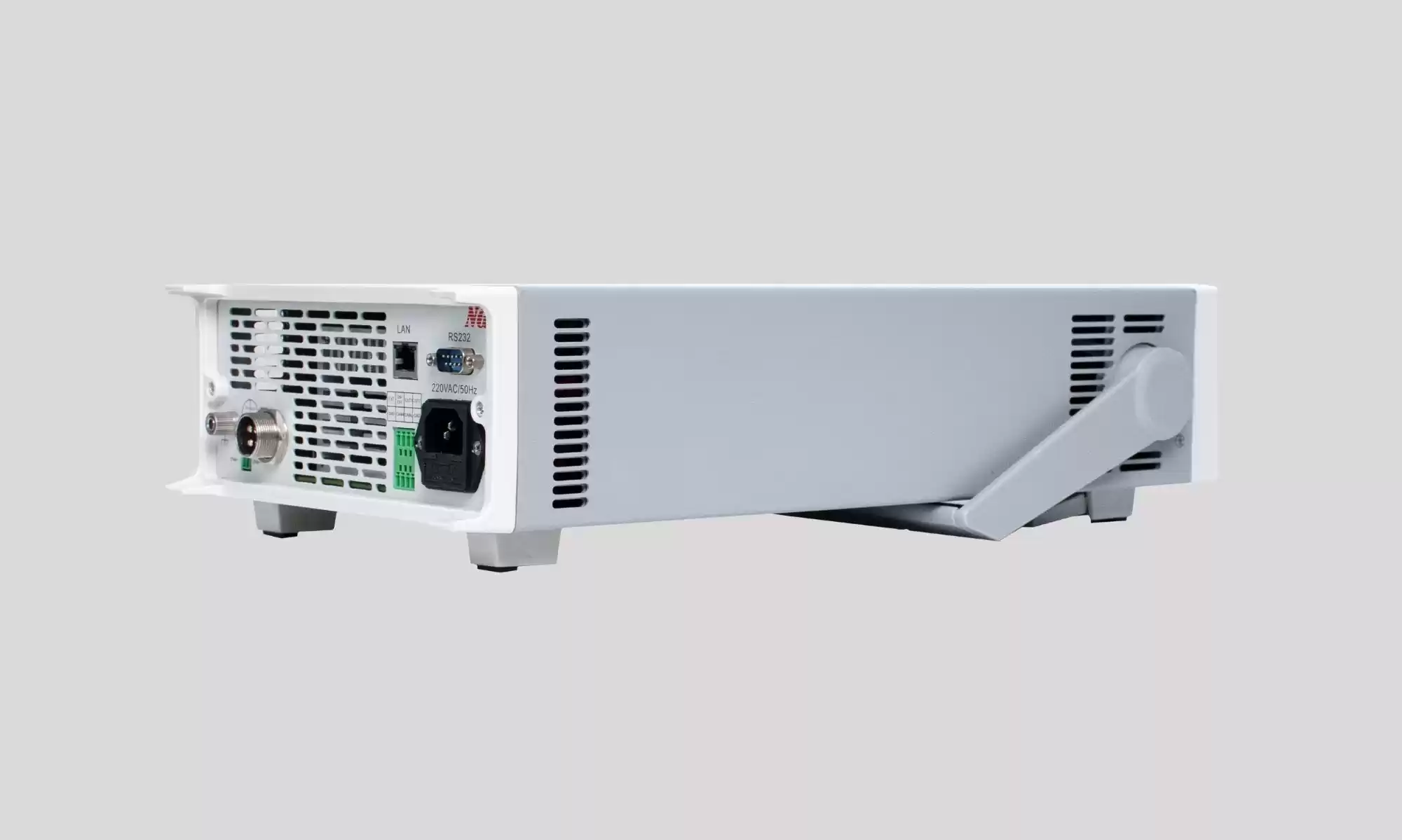

The N8361F also features a programmable sequence (SEQ) mode. This functionality allows technicians to simulate custom voltage and current waveforms for aging tests and stability analysis. Additionally, the dual-outlet design (front and rear) simplifies both desktop use and integration into larger automated test equipment (ATE) racks. The unit also includes digital I/O ports to support synchronized trigger testing with external measurement tools.

Modern Laboratory Integration

Modern facilities require robust connectivity and high-speed data management. Therefore, the N8361F series includes standard LAN, RS232, and CAN communication interfaces. This ensures that your team can control and monitor multiple units remotely through a centralized PC application. The unit also supports standard SCPI and Modbus protocols for easy software secondary development.

When your project demands a reliable, high-speed bipolar power source, the N8361F stands out as the premier choice. Stop settling for slow equipment that compromises your transient analysis. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your high-speed laboratory. Trust nanotech-tmi for all your NGI and high-precision DC Power Supply requirements
