NGI N8331 Ultra-high Accuracy Battery Simulator (24CH/16CH)

Description

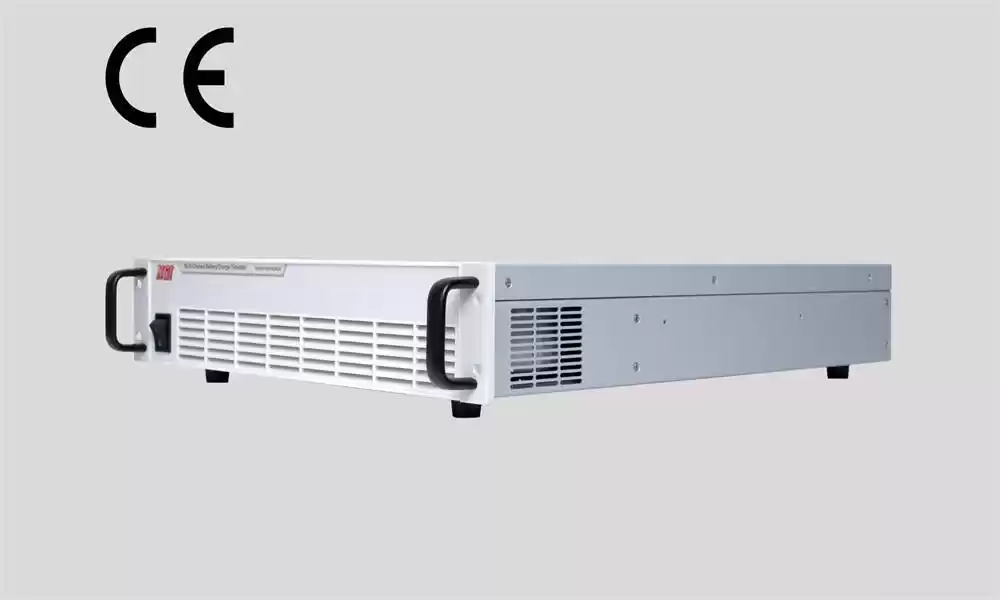

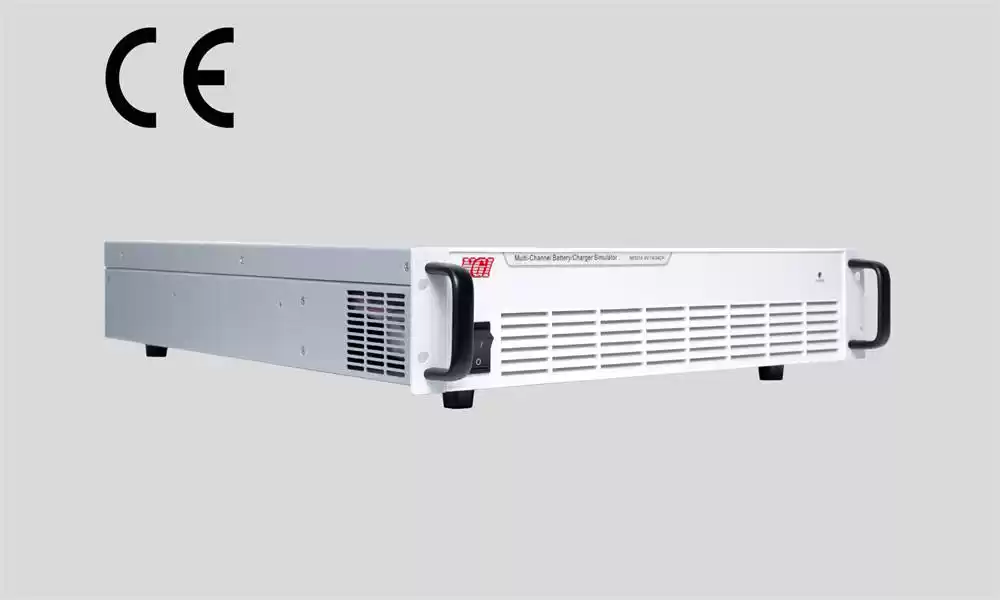

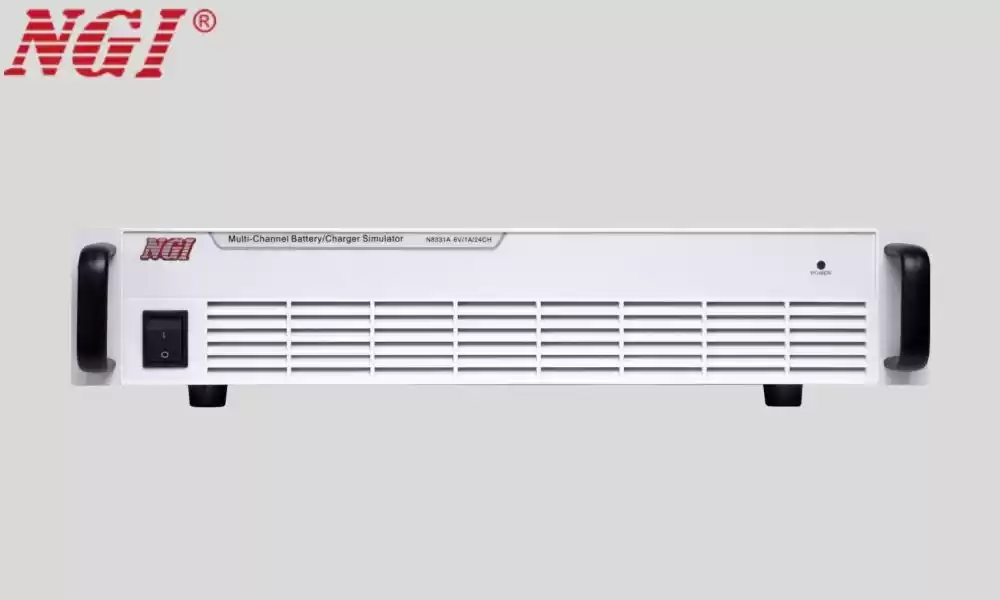

The NGI N8331 Ultra-high Accuracy Battery Simulator (24CH/16CH) provides an advanced, high-density solution for precision battery cell simulation. Engineers utilize this 24-channel instrument to validate Battery Management Systems (BMS) and consumer electronics with extreme reliability. This model combines low-power consumption with professional-grade accuracy within a compact 2U chassis. Consequently, your laboratory achieves maximum test efficiency while minimizing the physical footprint of your test equipment.

Instead of managing multiple single-channel units, your team gains a massive analytical advantage with the N8331. The system allows users to set independent voltage and current parameters for every isolated channel using the standard NGI application software. Therefore, you can simulate complex battery pack conditions and perform parallel multi-station testing simultaneously.

NGI N8331 Technical Advantages

This battery simulator packs industry-leading features for demanding R&D and production environments. It delivers an incredible voltage resolution of 100μV and a current resolution of 0.1μA. Furthermore, the unit supports μA-level current measurement, which is essential for testing the static current of sensitive electronic components. The four-wire sense system eliminates voltage loss from lead resistance, ensuring your technicians capture exact data points from the device under test (DUT).

The N8331 also features robust isolation between channels and from output to ground. This safety design enables engineers to connect multiple devices in series to replicate high-voltage battery pack working conditions. Additionally, the integrated software supports batch operations and real-time data visualization. You can generate comprehensive test reports and analyze graphs directly through the interface to streamline your quality control process.

Modern Laboratory Integration

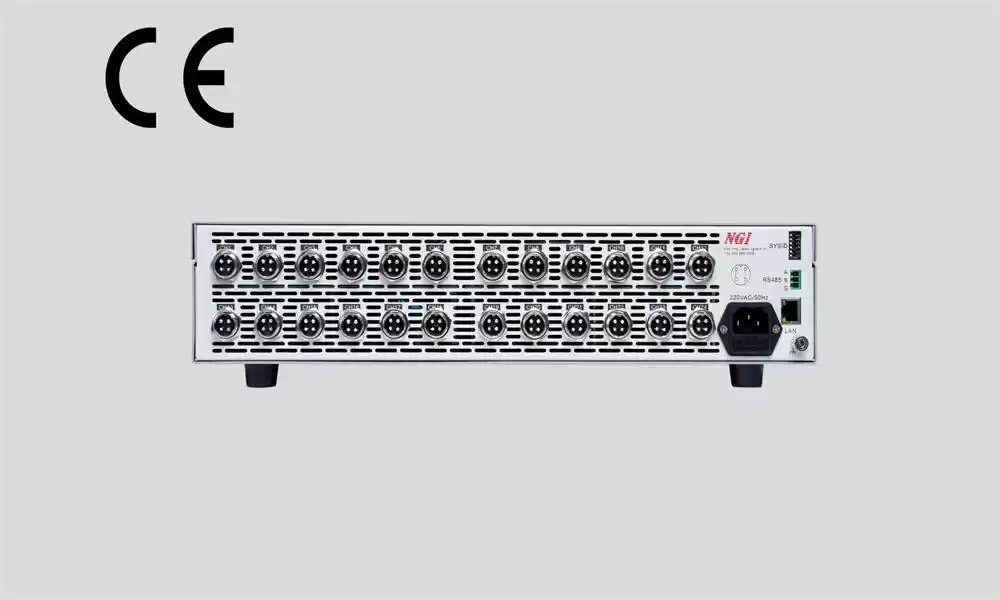

Modern facilities require seamless communication and robust data management. Therefore, the N8331 series includes standard LAN and RS485 interfaces. It supports high-speed communication response times of ≤10ms, ensuring real-time control during automated testing cycles. Technicians can also integrate the unit into larger BMS test platforms that include temperature simulation and insulation detection units.

When your project demands an ultra-high accuracy multi-channel simulator, the N8331 stands out as the premier choice. Stop settling for low-resolution tools that delay your development cycles. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your 24-station test setup. Trust nanotech-tmi for all your NGI and high-precision Battery Simulator requirements!
