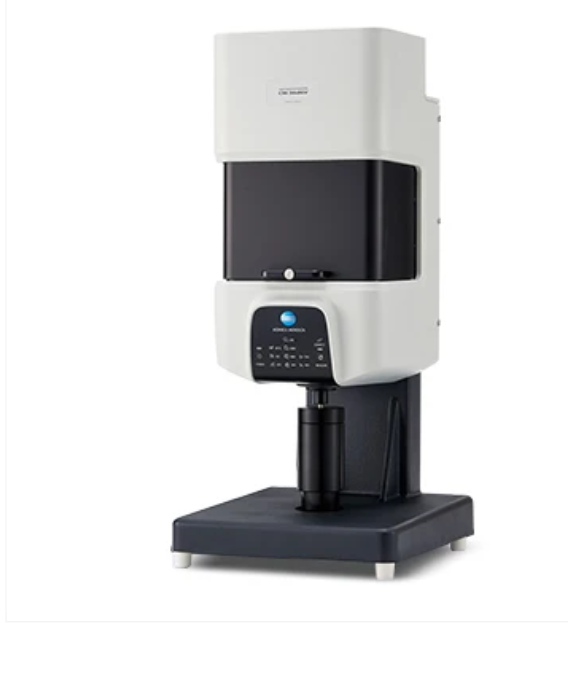

Spectrophotometer CM-36dGV
| Color | Illumination/ Viewing System | Reflectance:
di:8°, de:8° (diffused illumination, 8° viewing), SCI (Specular Component Included) / SCE (Specular Component Excluded) switchable. Conforms to CIE No.15, lSO7724/1, ASTM E1164, DIN 5033 Teil7, and JIS Z 8722 condition c standards |
| Transmittance:
di:0°, de:0° (diffused illumination, 0° viewing) Conforms to CIE No.15, ASTM E1164, DIN 5033 Teil7, and JIS Z 8722 condition g standards |
||
| Integrating Sphere Size | Ø152 mm (6 inches) | |
| Detector | Dual 40-element silicon photodiode arrays | |
| Spectral Separation Device | Diffraction grating | |
| Wavelength Range | 360 to 740 nm | |
| Wavelength Pitch | 10 nm | |
| Half Bandwidth | approx. 10 nm | |
| Reflectance
Range |
0 to 200% | |
| Resolution: 0.01% | ||
| Light Source | 3 Pulsed xenon lamps (2 with UV cut filters) | |
| Illumination / Measurement Area | LAV: Ø30.0 mm / Ø25.4 mm
LMAV: Ø20.0 mm / Ø16.0 mm MAV: Ø11.0 mm / Ø8.0 mm SAV: Ø7.0 mm / Ø4.0 mm Trans: Ø24.0 mm / Ø17.0 mm |
|
| Repeatability | Colorimetric values: Standard deviation within ΔE*ab 0.02
Spectral reflectance: Standard deviation within 0.1% (When a white calibration plate is measured 30 times at 10-second intervals after white calibration) |
|
| Inter-Instrument Agreement | Within ΔE*ab 0.12
(Based on average for 12 BCRA Series II color tiles; LAV/SCI. Compared to values measured with master body under Konica Minolta standard measurement conditions) |
|
| UV Setting | 100% / 0% / Adjusted
Instantaneous numerical adjustment of UV with no mechanical filter movement required*1; 400 nm and 420 nm UV cutoff filters |
|
| Gloss | Measurement Angle | 60° |
| Light Source | White LED | |
| Detector | Silicon photodiode | |
| Measurement Range | 0 to 200 GU | |
| Resolution: 0.01 GU | ||
| Measurement Area | MAV (LAV/LMAV/MAV color measurement area):
Ø10.0 x 8.0 mm ellipse |
|
| SAV (SAV color measurement):
Ø3.0 mm |
||
| Repeatability | 0 to 10 GU: within 0.1 GU
10 to 100 GU: within 0.2 GU 100 to 200 GU: 0.2% (When measured 30 times at 10-second intervals) |
|
| Inter-Instrument Agreement | 0 to 10 GU: ±0.2 GU
10 to 100 GU: ±0.5 GU (MAV. Compared to values measured with master body under Konica Minolta standard conditions) |
|
| Geometry | JIS Z 8741 (MAV), JIS K 5600, ISO 2813, ISO 7668 (MAV), ASTM D523-08, ASTM D2457-13, and DIN 67530 | |
| Measurement Time | Approx. 3.5 second (SCI+SCE measurement)
Approx. 4 second (SCI+SCE+Gloss measurement) Approx. 2.5 second (Transmittance) Approx. 3 second (UV-cut/UV-adjusted; SCI or SCE) |
|
| Minimum Interval Between Measurements | Approx. 4 second (SCI+SCE measurement)
Approx. 4.5 second (SCI+SCE+Gloss measurement) Approx. 3 second (Transmittance) Approx. 4 second (UV-cut/UV-adjusted; SCI or SCE) |
|
| Sample Viewer Function | Using internal camera
(Image viewable/copiable using optional software such as SpectraMagic NX software Ver. 3.2 or later) |
|
| Internal Performance Check*2 | WAA (Wavelength Analysis & Adjustment) Technology | |
| Interface | USB 2.0 | |
| Target Mask Auto Detection | Yes | |
| Power | Dedicated AC adapter | |
| Operating temperature / humidity range | 13 to 33°C, Relative humidity: 80% or less (at 35°C) with no condensation | |
| Storage temperature / humidity range | 0 to 40°C, Relative humidity: 80% or less (at 35°C) with no condensation | |
| Size (W x H x D) | Approx. 300 x 677 x 315 mm | |
| Weight | Approx. 14.0 kg | |
Description
The Konica Minolta Spectrophotometer CM-36dGV delivers a specialized, high-precision solution for the simultaneous evaluation of color and gloss in professional laboratory environments. Quality control managers and textile engineers utilize this flagship benchtop instrument to validate production standards with absolute accuracy. This specific model addresses the unique challenge of measuring samples containing optical brighteners (OBA) through its patented Numerical UV Control (NUVC) technology. Consequently, your facility gains the ability to manage complex color data for pulp, paper, and fabrics with industry-leading efficiency.
Instead of managing two separate instruments for appearance testing, your team achieves a streamlined analytical workflow with the Konica Minolta CM-36dGV. The system provides an integrated 60° gloss sensor that complies with ISO 2813 standards. Therefore, you can confidently capture spectral reflectance and surface gloss at the exact same point on a sample while maintaining an inter-instrument agreement of ∆E*ab < 0.12.
Konica Minolta CM-36dGV Technical Advantages
This industrial-grade spectrophotometer packs advanced features for high-throughput production and R&D laboratories. It features the innovative Wavelength Analysis & Adjustment (WAA) function, which automatically analyzes and adjusts for wavelength shifts during every calibration cycle. This self-diagnostic capability ensures that your measurement data remains accurate and reliable between scheduled maintenance intervals. Furthermore, the unit delivers four switchable aperture sizes to accommodate various sample geometries, from large plastic panels to tiny electronic components, within a single workstation.
The CM-36dGV also features a vertical design that simplifies the placement of flexible materials like cloth and thin films. Technicians utilize the integrated camera sample viewer to see the measurement area directly on their computer screen, ensuring precise target alignment every time. Additionally, the high-contrast status panel displays measurement conditions at a glance, significantly reducing operator errors during high-volume testing cycles. The instrument fully complies with international standards such as CIE No.15, ISO 7724/1, and ASTM D523, ensuring your data meets global regulatory requirements.
Modern Industrial Integration
Modern manufacturing facilities require robust connectivity and high-speed monitoring for industrial scaling. Therefore, the CM-36dGV includes a high-speed USB interface for seamless connection to SpectraMagic™ NX2 software. It supports complex color-matching calculations and digital color management across global supply chains, allowing for straightforward secondary development in automated quality control environments. The durable construction and vertical footprint ensure the instrument remains stable and space-efficient on the laboratory bench.
When your project demands the highest level of color-gloss precision and benchtop flexibility, the Konica Minolta CM-36dGV stands out as the premier choice. Stop settling for low-speed tools that hide critical appearance deviations in your production line. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your color laboratory. Trust nanotech-tmi for all your high-precision Spectrophotometer requirements!
