| Model | CM-26d | CM-25d | ||
| Illumination/ viewing system | di: 8°, de: 8° (diffuse illumination: 8° viewing)
SCI (specular component included) / SCE (specular component excluded) switchable |
|||
| Integrating sphere | Ø54 mm | |||
| Light source | Pulsed xenon lamp ×2 | Pulsed xenon lamp ×1 | ||
| Detector | Dual 40-element silicon photodiode arrays | Dual 32-element silicon photodiode arrays | ||
| Spectral separation device | Planar diffraction grating | |||
| Measurement Wavelength range | 360 to 740 nm | 400 to 700 nm | ||
| Measurement Wavelength pitch | 10 nm | |||
| Half bandwidth | Approx. 10 nm | |||
| Reflectance Measurement range | 0 to 175%; Display resolution: 0.01 | |||
| Illumination area | MAV : Ø12 mm
SAV : Ø6 mm |
MAV : Ø12 mm | ||
| Measurement area | MAV: Ø8 mm
SAV: Ø3 mm |
MAV : Ø8 mm | ||
| Repeatability | Standard deviation within ΔE*ab 0.02 | Standard deviation within ΔE*ab 0.04 | ||
| (When a white calibration plate is measured 30 times at 5-second intervals after white calibration) | ||||
| Inter-instrument agreement | Within ΔE*ab 0.12 | Within ΔE*ab 0.20 | ||
| (Based on average for 12 BCRA Series II color tiles; MAV SCI; compared to values measured with a master body under KONICA MINOLTA standard measurement conditions) | ||||
| UV adjustment | 100% / 0% / Adjusted (Instantaneous numerical adjustment of UV with no mechanical filter movement required)*1 ; 400nm UV cutoff filter | 0% only; 400 nm UV cutoff filter | ||
| Observer | 2° observer angle, 10° observer angle | |||
| Illuminant | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65, User-defined illuminant*2
(Simultaneous evaluation with two light sources possible) |
|||
| Display items | Colorimetric values/graph, color difference values/graph, spectral graph, pass/fail judgment, pseudocolor | |||
| Colorimetric values | L*a*b*, L*C*h, Hunter Lab, Yxy, XYZ, and color difference in these spaces; Munsell (C) | |||
| Indices | MI, WI (ASTM E313-73), YI (ASTM E313-73, ASTM D1925), ISO brightness (ISO 2470), WI/Tint (CIE/Ganz), Strength, Opacity, Grey scale (ISO 105-A05), 8° gloss value, User index *2 |
MI, WI (ASTM E313-73), YI (ASTM E313-73, ASTM D1925), ISO brightness (ISO 2470), WI/Tint (CIE), Strength, Opacity, Grey scale (ISO 105-A05), 8° gloss value, User index *2 |
||
| Color difference equations | ΔE*ab (CIE1976) / ΔE94 (CIE1994) / ΔE00 (CIE2000) / CMC (l:c) / Hunter ΔE / DIN99o | |||
| Applicable standards | DIN 5033 Teil 7, JIS Z 8722 Condition “c”, ISO 7724/1, CIE No.15 | |||
| Measurement time | Approx. 0.7 sec. (Measurement mode: SCI or SCE)
(From pressing trigger button to measurement completion) |
|||
| Minimum measurement interval | Approx. 1.5 sec (Measurement mode: SCI or SCE) | |||
| Data memory | 1,000 target data + 5,100 sample data | |||
| Battery performance | Measurement mode: SCI or SCE
Approx. 3,000 measurements (approx. 1,000 measurements when using Bluetooth) when measurements are taken at 10-second intervals at 23°C with the dedicated lithium battery |
|||
| Viewfinder function | Available (with white LED illumination) | |||
| Display | 2.7″ color TFT-LCD with reversible portrait viewing mode | |||
| Display language | English, Japanese, German, French, Italian, Spanish, Simplified Chinese, Portuguese, Russian, Turkish, Polish | |||
| Interface | USB 2.0; Bluetooth (SPP-compatible. Optional Bluetooth module required) | |||
| Power | Dedicated lithium-ion battery (removable), USB bus power (with lithium-ion battery installed), Dedicated AC adapter (with lithium-ion battery installed) |
|||
| Charging time | Approx. 6 h | |||
| Operating temperature/ humidity range | Temperature: 5 to 40°C, Relative humidity: 80% or less (at 35°C) with no condensation | |||
| Storage temperature/ humidity range | Temperature: 0 to 45°C, Relative humidity: 80% or less (at 35°C) with no condensation | |||
| Size | Approx. 81 (W) × 93 (H) × 229 (D) mm | |||
| Weight | Approx. 630 g | Approx. 620 g | ||
Description
Spectrophotometer CM-26d / CM-25d

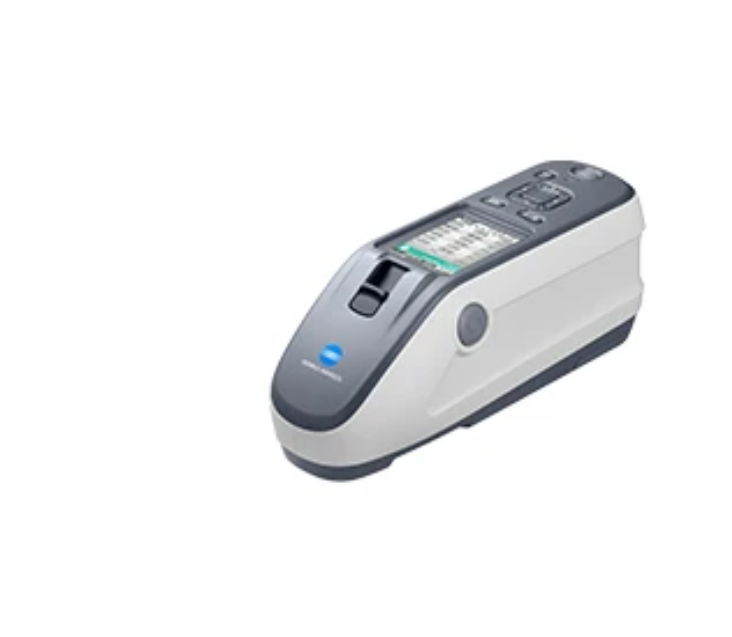

The Konica Minolta Spectrophotometer CM-26d and Spectrophotometer CM-25d, with d:8° geometry and horizontal alignment, are designed for color measurement of various samples such as automotive interior parts and trims, small plastic parts, electronic devices, ceramics, and more. These spectrophotometers provide high accuracy and repeatability for consistent digital color data management within a supply chain.
The Konica Minolta Spectrophotometer CM-26d and CM-25d deliver a specialized, high-precision solution for digital color data management across global supply chains. Quality assurance managers and automotive technicians utilize these horizontal-style instruments to validate the color of interior trims, small plastic parts, and electronic enclosures with absolute accuracy. This specific series addresses the unique requirement of maintaining consistent color standards between different manufacturing facilities. Consequently, your facility gains the ability to eliminate visual inspection errors and reduce production waste through reliable spectral data.
Instead of relying on uncalibrated color readers that struggle with tight tolerances, your team achieves a technical advantage with the Konica Minolta CM-26d. The system provides a market-leading inter-instrument agreement (IIA) that ensures your measurements match those of your partners and customers worldwide. Therefore, you can confidently share digital color standards and perform pass/fail judgments without the need for physical master samples.
Konica Minolta CM-26d Technical Advantages
This portable spectrophotometer packs advanced features for demanding industrial and R&D environments. It features an integrated viewfinder that allows technicians to position the instrument precisely on small or patterned samples. This visual guidance ensures that your engineering team captures exact color data from specific regions of interest without the risk of measurement overlap. Furthermore, the unit delivers switchable measurement areas between MAV (Ø8mm) and SAV (Ø3mm) to accommodate various part sizes within a single inspection cycle.
The CM-26d also features a high-resolution 2.7-inch color TFT display that provides real-time spectral graphs and pseudocolor indicators. Technicians can toggle between SCI (Specular Component Included) and SCE (Specular Component Excluded) modes to analyze both true color and surface appearance simultaneously. Additionally, the unit supports the Configuration Tool CM-CT1 software, which allows users to synchronize settings across multiple instruments effortlessly.
