N3600 Programmable DC Power Supply(800 to 9000W)
N3600 Programmable DC Power Supply(800 to 9000W)
●Voltage range: 16V-1200V
●Current range: 5A-1500A
●Power range: 800W-9kW
●Multiple devices operation in cascade mode, up to 90kW
●CC, CV and CP mode
●Sequence test function(SEQ), up to 100 groups sequence files, up to 100 steps per file
●Editable rise/fall slew rate

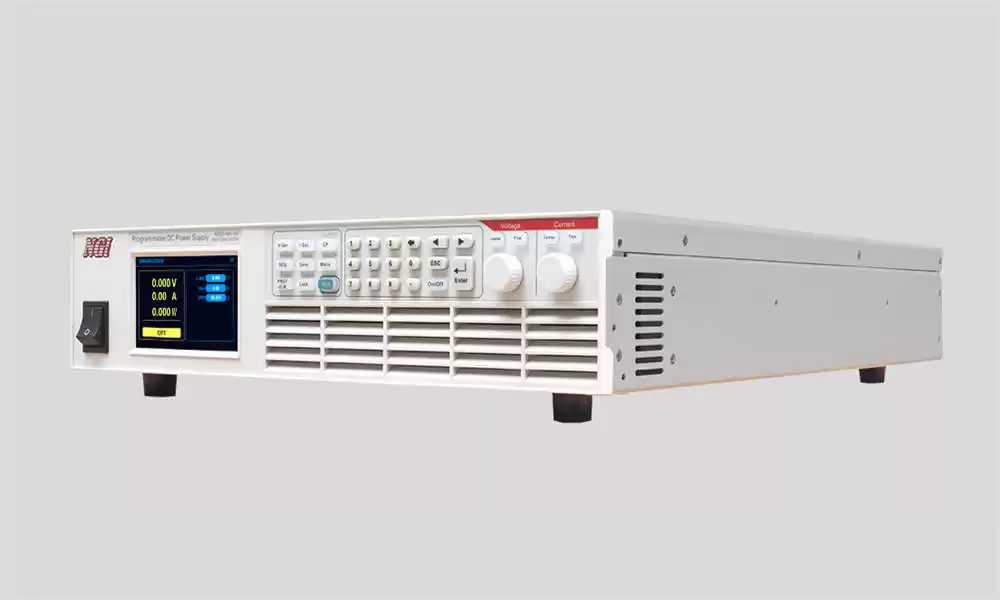

●Convenient HMI (human-machine interaction) interface on LCD screen

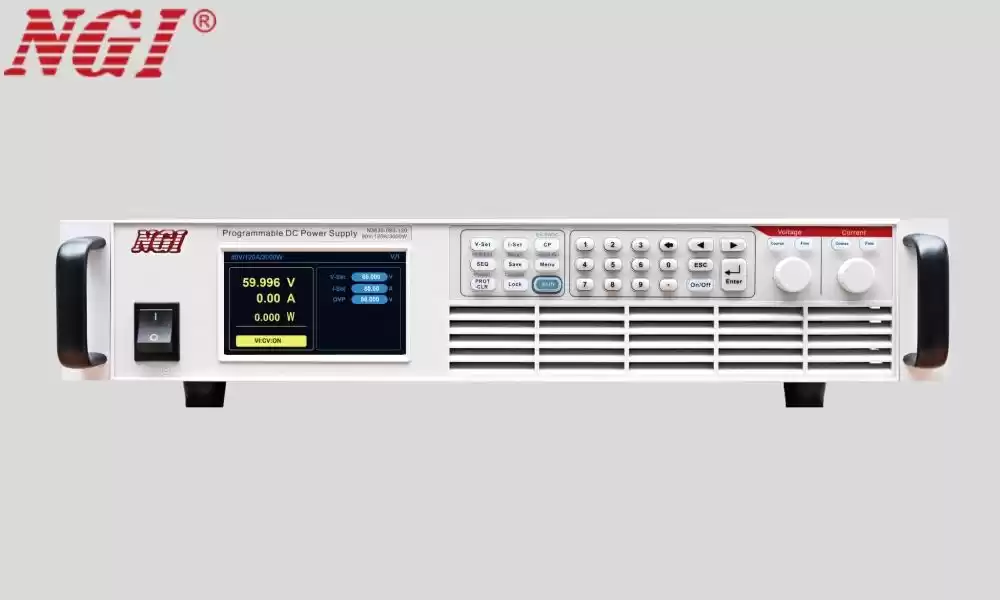

●Equipped with LCD screen, numeric buttons and knob to support local operation
●External dissipater to protect the power supply and DUT
●Standard 19-inch chassis, available for benchtop or rack installation

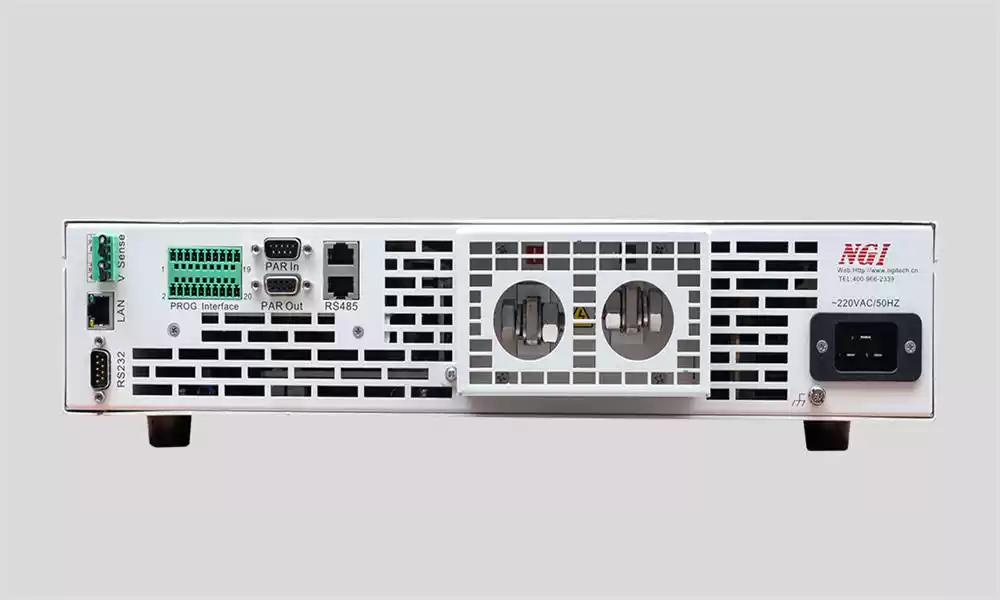

●Built-in RS232/LAN communication interface
●Multiple protections: OCP, OVP, UVP, OTP, OPP, peripheral control communication error alarm
●Analog programming (APG) interface, current monitoring interface, remote trigger function to realize complex function control and monitoring
Description
The NGI N3600 Programmable DC Power Supply delivers a robust and wide-range solution for high-power industrial and laboratory applications. Engineers utilize this versatile series to power everything from small laboratory prototypes to massive industrial automation systems. With a power range spanning 800W to 9kW, the N3600 provides the flexibility required for modern energy research and component validation. Consequently, your facility gains a reliable power source that scales alongside your project demands.
Instead of investing in multiple single-purpose units, your laboratory achieves maximum versatility with the N3600. The system supports output voltages up to 1200V and currents up to 1500A. Therefore, you can accurately test high-voltage LED arrays, DC/DC converters, and battery systems with a single, high-performance instrument.
NGI N3600 Series Technical Advantages
This power supply packs professional-grade features for demanding R&D environments. It supports constant current (CC), constant voltage (CV), and constant power (CP) modes to handle diverse load characteristics. Furthermore, the unit features a high-speed sequence (SEQ) test function. This allows technicians to program up to 100 groups of sequence files to simulate complex real-world power fluctuations.
The N3600 also supports massive power expansion through its advanced cascade mode. You can connect multiple devices to reach a total output power of 90kW. Additionally, the unit features a standard 19-inch chassis design, making it ideal for both benchtop use and integrated rack installations. The built-in safety terminals protect operators during high-voltage testing, ensuring a secure working environment at all times.
Modern Laboratory Integration
Modern facilities require seamless communication and robust data logging capabilities. Therefore, the N3600 series includes standard LAN and RS232 interfaces for remote operation. Technicians can integrate the unit into automated test equipment (ATE) systems using the external analog programming (APG) interface. This connectivity allows for real-time current monitoring and remote trigger functions to realize complex automation control.
When your project demands a high-power, high-reliability DC source, the NGI N3600 stands out as the premier choice. Stop settling for low-power tools that limit your testing throughput. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your high-power laboratory requirements. Trust nanotech-tmi for all your NGI and high-precision DC Power Supply needs!
