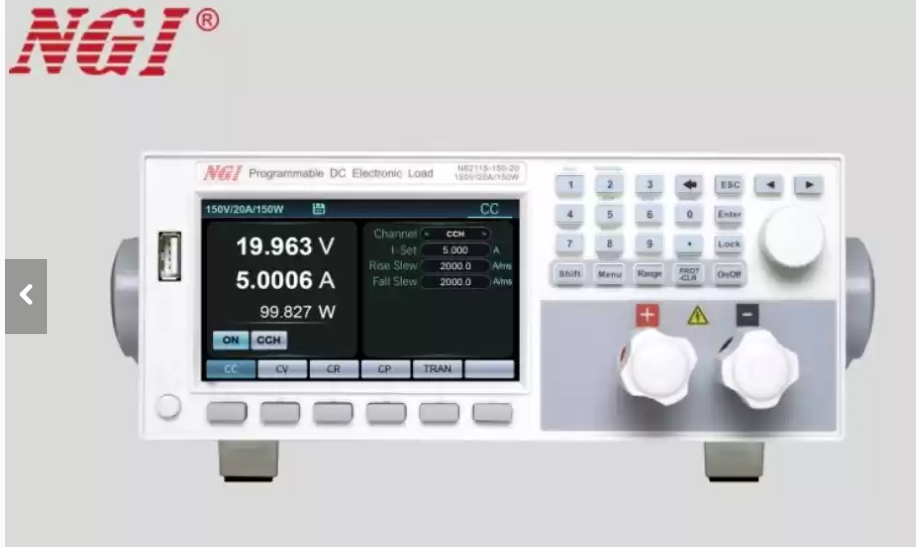

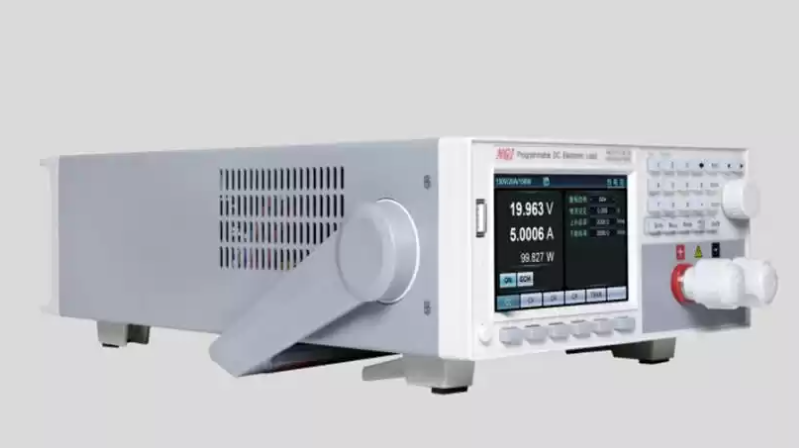

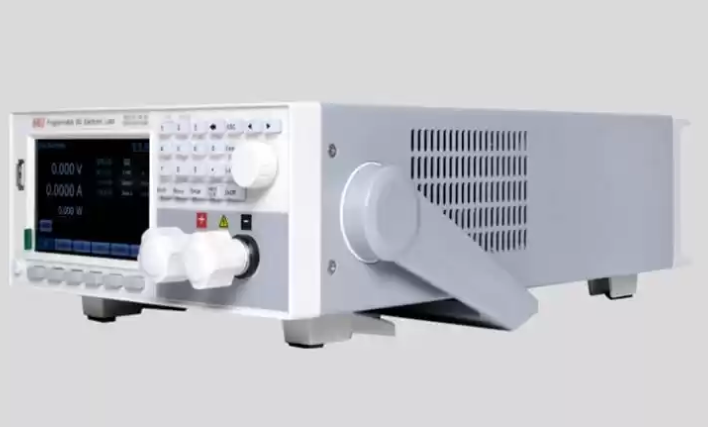

N62100 Programmable DC Electronic Load(150W/300W/600W)

Description

The NGI N62100 Series Programmable DC Electronic Load delivers a specialized, high-performance solution for precision power supply testing and industrial quality control. Engineers utilize this benchtop instrument to validate AC/DC power supplies, LED drivers, and fast-charging adapters with absolute precision. This specific series addresses the unique challenge of simulating complex nonlinear loads in a compact form factor. Consequently, your laboratory gains a versatile analytical tool that captures high-speed transients and transient responses with a 500kHz sampling rate.

Instead of struggling with generic loads that lack specialized simulation modes, your team achieves a technical advantage with the NGI N62100 series. The system provides eight independent operation modes, including unique combinations like CV+CC and CR+CC. Therefore, you can confidently perform power-on tests and simulate the I-V characteristics of LED strings without risking damage to your sensitive devices under test (DUT).

N62100 Technical Advantages

This programmable electronic load packs advanced features for demanding R&D and production environments. It supports high-speed dynamic testing across CC, CV, CP, and CR modes, allowing technicians to replicate rapid current changes with microsecond accuracy. Furthermore, the unit features a dual-measurement range for all major parameters, ensuring high resolution for both low-power and high-power applications. This level of detail allows your engineering team to identify minute stability issues during thermal aging and long-term reliability cycles.

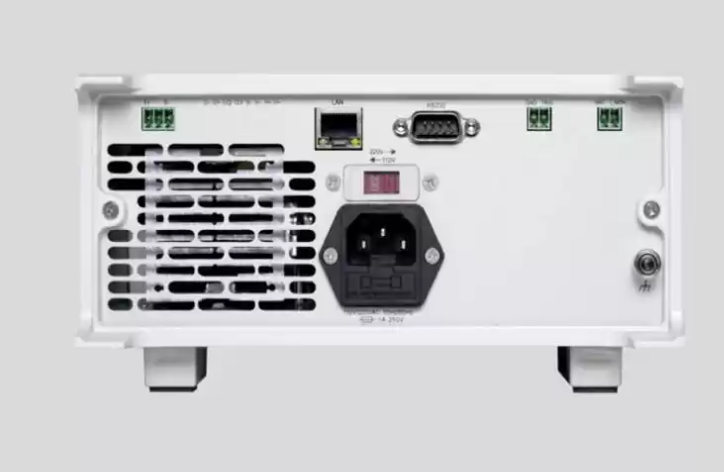

The N62100 series also integrates a specialized LED simulation function that replicates the nonlinear loading behavior of real LED light sources. Technicians can set the rated current and operating voltage directly through the 4.3-inch high-definition screen. Additionally, built-in discharge test and impedance simulation functions provide a comprehensive toolset for battery characterization and capacitor evaluation. The standard LAN and RS232 interfaces ensure seamless integration into automated test equipment (ATE) systems for high-throughput testing.

Modern Laboratory Integration

Modern testing facilities require robust connectivity and high-speed data management for electronics research. Therefore, the N62100 series includes standard communication ports that simplify remote operation and real-time data logging. It supports both the SCPI and Modbus-RTU protocols, allowing for straightforward secondary development in complex software-controlled test environments. The compact benchtop design ensures the unit fits easily on a standard workstation or within a 19-inch rack for multi-channel scaling.

When your project demands the highest level of precision and sampling speed for component validation, the NGI N62100 stands out as the premier choice. Stop settling for low-speed tools that hide critical failure points in your prototypes. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your laboratory. Trust nanotech-tmi for all your high-precision DC Electronic Load requirements!
