Air-Chamber Temperature Cycle Tester
Air-Chamber Temperature Cycle Tester
Air-chamber temperature cycle tester
| Model | NT551A | NT1051A | NT1251A | NT1051W | NT1251W | NT2051W |
|---|---|---|---|---|---|---|
| Freezer | Air-cooled | Air-cooled | Air-cooled | water cooled | water cooled | water cooled |
| Inner dimensions (W x H x D mm) | 370×330×400 | 370×500×400 | 650×500×400 | 370×500×400 | 650×500×400 | 700×500×600 |
| Contents (L) | 48 | 74 | 130 | 74 | 130 | 210 |
| Low temperature test temperature range | -65℃ to 0℃ | -65℃ to 0℃ | -65℃ to 0℃ | -65℃ to 0℃ | -65℃ to 0℃ | -65℃ to 0℃ |
| High temperature test temperature range | +60℃ to +200℃ | +60℃ to +200℃ | +60℃ to +200℃ | +60℃ to +200℃ | +60℃ to +200℃ | +60℃ to +200℃ |
| Pre-cooling temperature range | -75℃ to 0℃ | -75℃ to 0℃ | -75℃ to 0℃ | -80℃ to 0℃ | -80℃ to 0℃ | -80℃ to 0℃ |
| Preheating Temperature Range | +60℃ to +225℃ | +60℃ to +225℃ | +60℃ to +225℃ | +60℃ to +225℃ | +60℃ to +225℃ | +60℃ to +225℃ |
Air-chamber temperature cycle tester (300°C specification)
| Model | NT3702A | NT3702W |
|---|---|---|
| Freezer | Air-cooled | water cooled |
| Inner dimensions (W x H x D mm) | 370×450×400 | 370×450×400 |
| Contents (L) | 66 | 66 |
| Low temperature test temperature range | -65℃ to -10℃ | -65℃ to -10℃ |
| High temperature test temperature range | +80℃ to +300℃ | +80℃ to +300℃ |
| Pre-cooling temperature range | -75℃ to -20℃ | -75℃ to -20℃ |
| Preheating Temperature Range | +90℃ to +350℃ | +90℃ to +350℃ |
Description

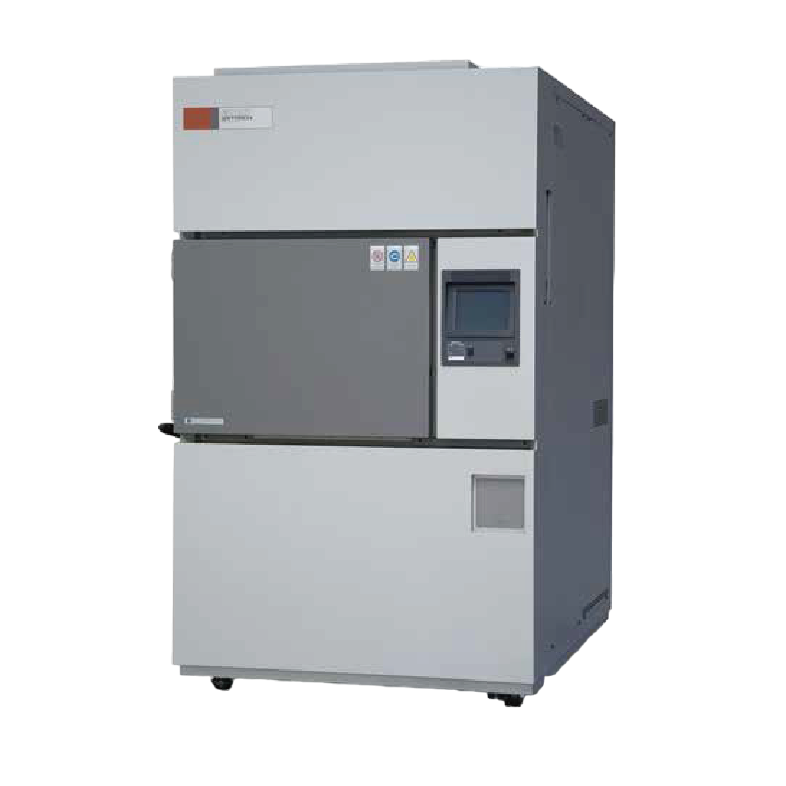

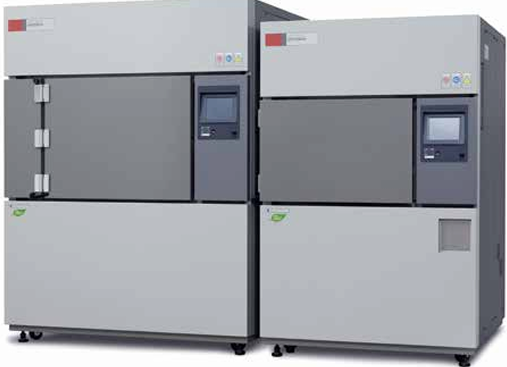

ETAC WINTECH NEO Air-Chamber Temperature Cycle Tester
The ETAC WINTECH NEO Series represents the pinnacle of thermal stress testing technology. Designed for high-precision reliability evaluation, this air-chamber system allows for rapid temperature cycling to identify potential failures in electronic components, automotive parts, and advanced materials before they reach the market.
Whether you are performing standard durability tests or pushing limits with the 300°C high-temperature specification, the WINTECH NEO delivers industry-leading uniformity and transition speeds.
Key Features & Benefits
-
High-Speed Thermal Cycling: Engineered for rapid heating and cooling transitions to simulate extreme environmental shifts.
-
Superior Uniformity: Advanced airflow design ensures consistent temperature distribution across all test samples, minimizing data variance.
-
Wide Application Range: Ideal for JEDEC, MIL-STD, and IEC compliance testing in semiconductor, battery, and aerospace industries.
-

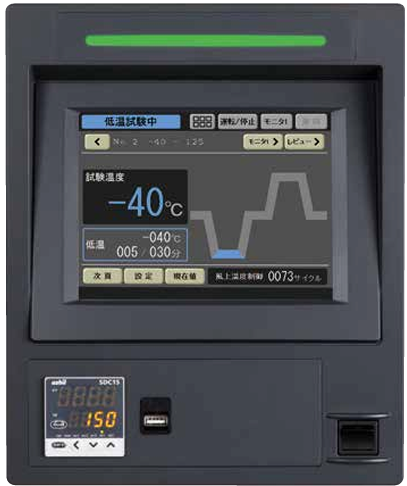

User-Centric Interface: Features a programmable controller for complex thermal profiles, ensuring repeatable and reliable results.
-
Versatile Configurations: Available in both air-cooled and water-cooled freezer systems to suit your facility’s infrastructure.
Technical Specifications
Standard WINTECH NEO Models
| Model | Freezer Type | Inner Dimensions (W×H×D mm) | Temp Range (Low/High) |
| NT551A | Air-cooled | 370 × 330 × 400 | -65℃ to +200℃ |
| NT1251A | Air-cooled | 650 × 500 × 400 | -65℃ to +200℃ |
| NT2051W | Water-cooled | 700 × 500 × 600 | -65℃ to +200℃ |
High-Temperature Models (300°C Spec)
| Model | Freezer Type | Inner Dimensions (W×H×D mm) | Temp Range (Low/High) |
| NT3702A | Air-cooled | 370 × 450 × 400 | -65℃ to +300℃ |
| NT3702W | Water-cooled | 370 × 450 × 400 | -65℃ to +300℃ |
Why Choose ETAC for Reliability Testing?
In the world of conduction reliability, precision is non-negotiable. ETAC systems are world-renowned for their robust construction and long-term stability. By integrating the WINTECH NEO Air-Chamber Tester into your R&D or QA workflow, you ensure your products meet the highest global standards for safety and performance.
