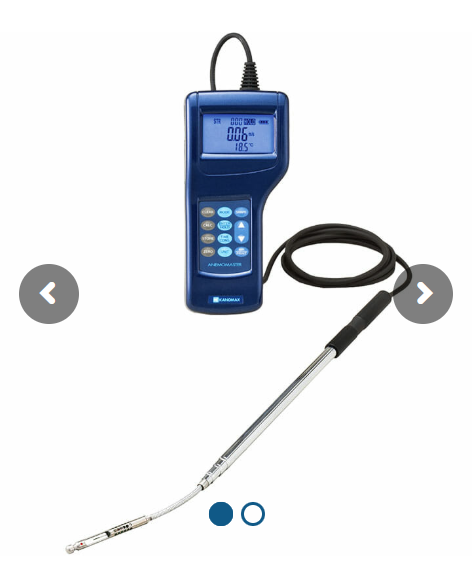

Anemomaster Professional HVAC Anemometer – Model 6036
Anemomaster Professional HVAC Anemometer – Model 6036
| Air Velocity | |
| Range | 2 to 6000 FPM (0.01 to 30.0m/s) |
| Resolution | 1 FPM (0.01 m/s) |
| Accuracy | +/- 3.0% of READING or 0.015 m/s |
| Temperature | |
| Range | -4 to 158°F (-20 to 70°C) |
| Resolution | 1°F (0.1°C) |
| Accuracy | +/- 1°F (+/- 0.5 °C) |
| Range | -5 to 5 kPa |
| Differential Pressure | |
| Range | -5 to 5 kPa |
| Resolution | 0.01 m/s 0.1 m/s |
| Accuracy | ±3% of READING or ±0.01 |
| General Specifications | |
| Analog Output | DC 0 to 3V |
| Interface | USB / Printer |
| Datalogging | Stores up to 1500 measurement data |
| Power Supply | 6 × AA Batteries or AC Adaptor (AC 100 to 240V , 50/60Hz) |
| Weight | 1.1 lbs (500g) |
| Operating Environment | Main body: 41 to 104°F (5 to 40°C) with no condensation Probe: -4 to 158°F (-20 to 70°C) with no condensation |
| Storage Environment | 14 to 122°F (-10 to 50°C) with no condensation |
| Standards | CE-mark |
| Warranty | 2 year |
| What’s Included | Meter, Operation manual, Carrying case, USB cable, AA batteries, Data processing Software, NIST certificate |
Description
Anemomaster Professional HVAC Anemometer – Model 6036
Multi-Function Handheld Hot-Wire Anemometer for Precision Airflow Testing
Accurate air velocity measurements are foundational to optimizing ventilation efficiency, validating indoor air quality, and balancing commercial HVAC systems. Inaccurate data leading to poor balancing can cause uneven building temperatures, poor ventilation performance, and inflated energy costs.
The Anemomaster Professional Model 6036 is an industry-standard, handheld hot-wire thermal anemometer engineered to deliver simultaneous tracking of air velocity, volumetric flow rate, temperature, and differential pressure. Equipped with an articulated telescopic probe, the Model 6036 allows field engineers to navigate deep ductwork and difficult ceiling diffusers with absolute precision.
Technical Performance & Measurement Specifications
The Model 6036 replaces multi-instrument workflows by integrating complete environmental diagnostic sensors into a single, palm-sized tool.
| Measurement Parameter | Operational Sensor Range | Practical Field Application |
| Air Velocity | 20 to 6,000 FPM (0.1 to 30.0 m/s) | High-accuracy profiling of both low-flow laminar spaces and high-velocity duct currents. |
| Temperature Tracking | -4°F to 212°F (-20°C to 100°C) | Simultaneous monitoring of thermal comfort metrics and HVAC heat exchanger performance. |
| Differential Pressure | Optional -5.00 to +5.00 kPa | Direct static pressure validation across filters, coils, and structural zones. |
| Duct Flow Calculations | Automated CFM / CMM conversions | Eliminates manual math errors by automatically combining velocity data with duct area inputs. |
Field Advantages & Operational Benefits
1. Superior Reach and Accessibility
-
Articulating Telescopic Probe: Features a rigid, extendable probe with a flexible tip. This allows technicians to maintain a perfectly perpendicular orientation to the airflow path inside ductwork, guaranteeing maximum accuracy.
-
Detachable Design: The smart probe assembly easily detaches from the main body, simplifying field replacements and annual lab calibrations without retiring the entire meter.
2. Advanced Data Management & Software Integration
-
Robust Data Storage: On-board data logging holds up to 1,500 individual data points, letting you record complex commercial facility traverses without losing a single line of data.
-
USB to PC Data Transfer: Seamless Windows software integration enables effortless data logging exports, generating professional validation reports for clients and building inspectors.
Primary Professional Applications
The rugged build quality and multi-parameter sensing capability make the Model 6036 a core diagnostic tool across several essential vectors:
-
HVAC Testing, Adjusting, & Balancing (TAB): Executing highly precise duct traverses to ensure uniform air delivery throughout multi-zone facilities.
-
Laboratory Fume Hood Certification: Verifying strict face-velocity safety benchmarks in containment hoods and chemical exhaust systems.
-
Cleanroom Velocity Traverses: Evaluating low-flow air supply filters to sustain critical ceiling-to-floor laminar circulation patterns.
-
Indoor Air Quality (IAQ) Audits: Troubleshooting stagnant zones, thermal comfort complaints, and fresh air intake ventilation rates.
