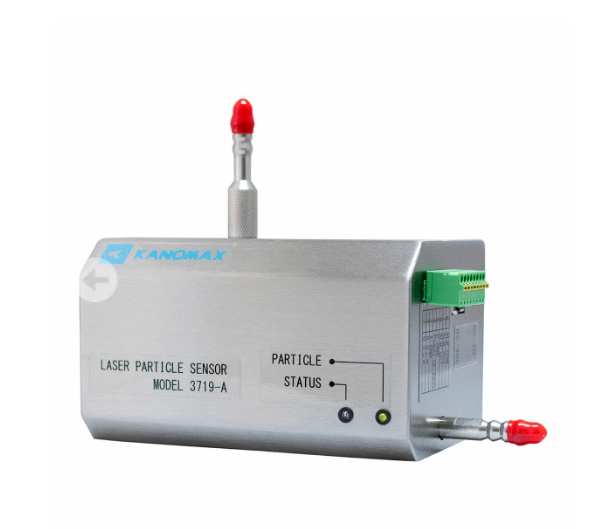

Cleanroom Monitoring System – Model CRMS
Cleanroom Monitoring System – Model CRMS
| Main Unit Specifications | |
|---|---|
| Measuring Particle Size | 3718-A: 0.3µm and 0.5µm; 3719-A: 0.5µm and 5.0µm |
| Counting Efficiency | 50% +/- 20% at smallest particle channel |
| Coincidental Loss | Less than 10% at 500,000 particles/cf |
| Zero Count | Less than 1 count / 5 minutes |
| General Specifications | |
| Flow Rate | 1.0 cfm (28.3 l/min) |
| Light Source | Laser diode |
| Interfaces | RS485 (Modbus capability); Analog output (4-20mA) |
| Enclosure | Stainless steel |
| Power Supply | DC24V (over network hub) or 9 to 28V (AC adapter) |
| Output | Particle counts, error status, alarm output |
| Vacuum Source | External pump |
| Operating Environment | 10 to 30°C (50 to 86°F)/20 to 85%RH with no condensation |
| Dimensions | W 5.2 x D 3.7 x H 3.1 inch (133 x 95 x 80 mm) |
| Weight | 2.2 lbs (1.0 kg) |
| Standards | ISO21501-4, JIS B9921, CE-mark |
| Warranty | 3 year |
| Standard Accessories | User’s Manual – English (1), User’s Manual – Japanese (1), AC adapter (1), Zero filter (1), Adapter 1 (1), Adapter 2 (1), Tygon tube 1 (1), Setting software DVD – 3718/19-40 (1) |
Description
Turnkey Monitoring for Regulatory Compliance
The CRMS takes the complexity out of cleanroom compliance. Designed as a comprehensive, ready-to-deploy solution, it continuously monitors critical environmental parameters—including airborne particle counts, differential pressure, temperature, and humidity—to ensure ongoing adherence to ISO and GMP guidelines. Whether you’re setting up a new facility or upgrading your existing monitoring infrastructure, CRMS offers a streamlined path to meeting audit and certification requirements.
Modular Hardware with Trusted Technology Partners
What sets the Kanomax CRMS apart is its modular design and integration of premium components from leading technology providers. The system can be configured with either AirCare Automation or Elemental Machines hardware, depending on your facility’s specific needs:
AirCare Automation: Offers local server solutions and integrated FFU (fan filter unit) control, ideal for facilities that require robust onsite control and reliability.

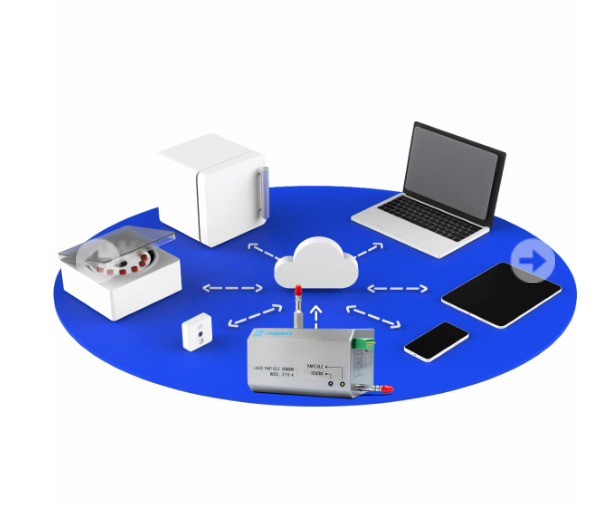

Elemental Machines: Provides wireless sensor connectivity with a cloud-based server, perfect for teams that prioritize remote access, real-time notifications, and scalability.
This flexibility allows Kanomax to tailor each CRMS installation to the customer’s environment, whether it’s a pharmaceutical cleanroom, semiconductor fabrication facility, or research laboratory.
Scalable, Customizable, and Future-Ready
Every cleanroom is unique, and each Kanomax CRMS is built to accommodate that reality. The system can be scaled and customized to fit a single cleanroom zone or an entire multi-room facility. With options for PoE (Power over Ethernet), wireless sensor integration, and centralized data acquisition, the CRMS is adaptable for future expansions and technology upgrades. Users can easily view trends, generate compliance reports, and set alerts based on preset thresholds—all from an intuitive software interface.
Reliable Performance, Backed by Expertise
Kanomax brings decades of expertise in airflow and particle measurement to the design of the CRMS. The system is engineered for 24/7 reliability, with robust data integrity and industry-standard calibration support.
