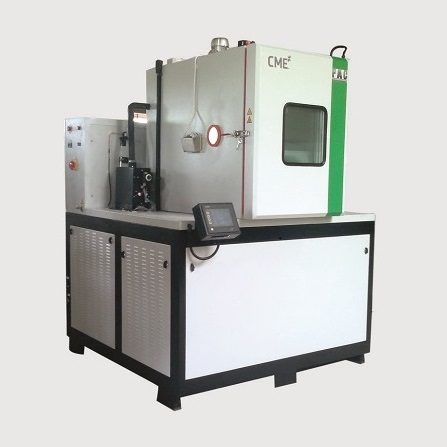

Thermal Cycling Chamber
Thermal Cycling Chamber
| Models | PAC 120 | PAC 225 | PAC 380 | PAC 540 | PAC 1000 | PAC 1500 | |||||||
| A | B | A | B | A | B | A | B | A | B | A | B | ||
| Test Space | |||||||||||||
| Dimension (WXDXH) |
mm | 500 x 400 x 600 | 500 x 400 x 600 | 500 x 600 x 750 | 500 x 600 x 750 | 600 x 740 x 840 | 600 x 740 x 840 | 750 x 800 x 900 | 750 x 800 x 900 | 1000 x 1000 x 1000 | 1000 x 1000 x 1000 | 1000 x 1500 x 1000 | 1000 x 1500 x 1000 |
| inch | 20 X 16 X 24 | 20 X 16 X 24 | 20 x 24 x 30 | 20 x 24 x 30 | 24 x 29 x 33 | 24 x 29 x 33 | 30 x 32 x 35 | 30 x 32 x 35 | 39 x 39 x 39 | 39 x 39 x 39 | 39 x 59 x 39 | 39 x 59 x 39 | |
| Test Space Volume | Ltr / Cuft | 120 / 4.2 | 225 / 8 | 380 / 13.4 | 540 / 19 | 1000 / 35 | 1500 / 53 | ||||||
| Temperature Range | (°C) (°F) |
– 40 to +180 -40 to +356 |
– 70 to +180 -94 to +356 |
– 40 to +180 -40 to +356 |
– 70 to +180 -94 to +356 |
– 40 to +180 -40 to +356 |
– 70 to +180 -94 to +356 |
– 40 to +180 -40 to +356 |
– 70 to +180 -94 to +356 |
– 40 to +180 -40 to +356 |
– 70 to +180 -94 to +356 |
– 40 to +180 -40 to +356 |
– 70 to +180 -94 to +356 |
| Ramp rate** | (°C/min) | 3/5/6/7/8/10/12/15/20 as per IEC 60068-3-5 | |||||||||||
| **Customized ramp rates are also available | |||||||||||||
Description
Thermal Cycling Chamber is an advanced environmental testing equipment designed to evaluate the durability, reliability, and performance of materials, components, and finished products under repeated high and low temperature conditions. This chamber simulates real-world environmental stress by continuously cycling between extreme temperatures, helping manufacturers identify hidden defects such as material fatigue, solder joint cracks, structural deformation, and performance degradation before products reach the market.
The Thermal Cycling Test Chamber is widely used in industries such as electronics, automotive, aerospace, solar energy, defense, and research laboratories to perform accelerated life testing and environmental stress screening (ESS). By exposing products to controlled temperature variations, the chamber helps ensure long-term reliability, product safety, and compliance with international testing standards such as IEC 60068-2-14, MIL-STD, and JEDEC.
Equipped with high precision heating and cooling systems, programmable controllers, and uniform airflow technology, the chamber ensures accurate temperature distribution and repeatable test results. Thermal cycling testing is essential for evaluating the effects of thermal expansion and contraction on different materials, which helps manufacturers improve product design, reduce failure risk, and enhance product lifespan.
Our Thermal Cycling Chamber is designed for research institutions, quality control labs, and industrial manufacturers who require reliable and consistent environmental testing solutions for product validation and performance improvement.
