NGI N83130A-06100 Supercapacitor Capacitance & DCIR Tester | Nanotech TMI

Description

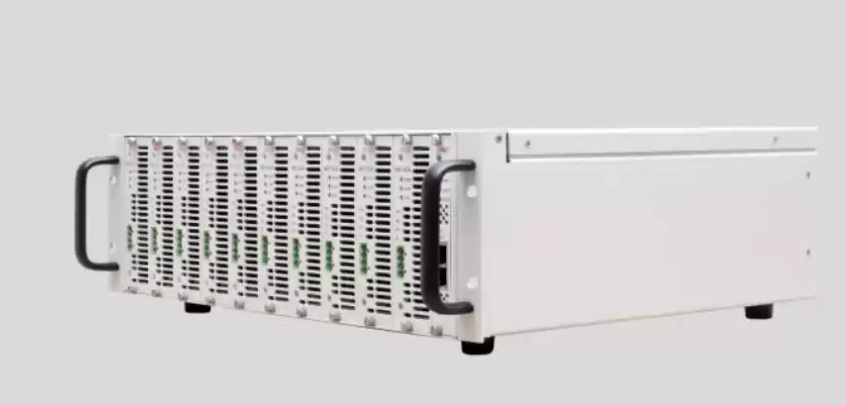

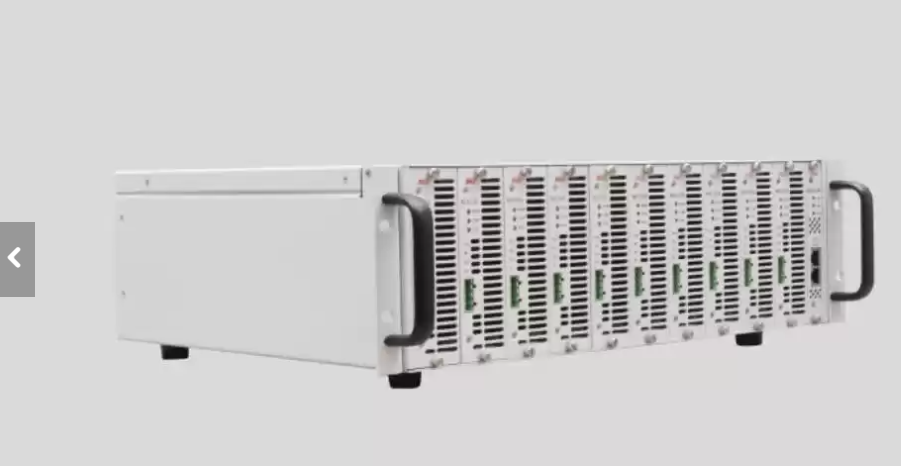

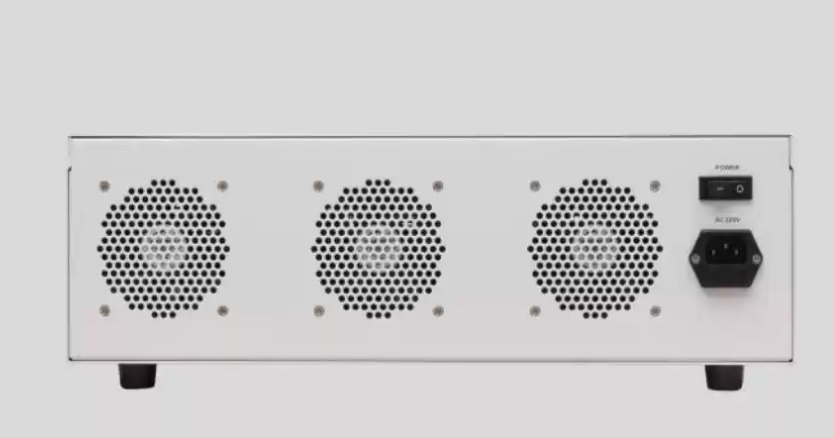

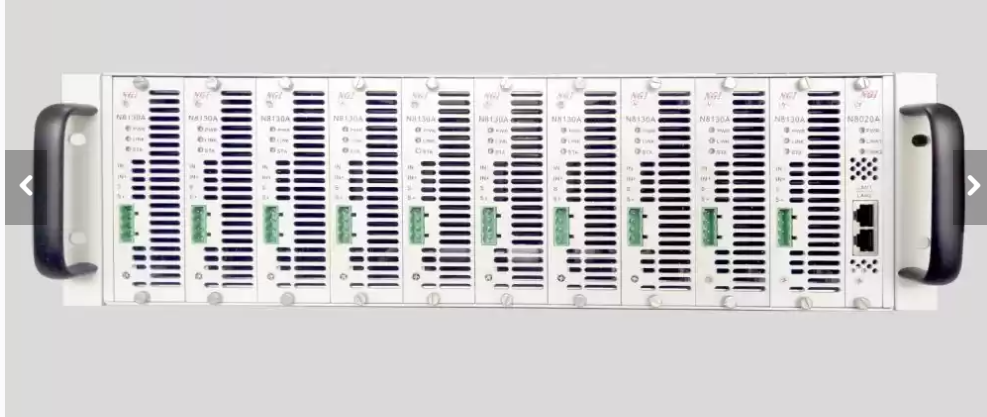

The NGI N8130A-06100 Supercapacitor Capacitance & DCIR Tester delivers a high-precision solution for the R&D and production of advanced energy storage devices. Engineers utilize this 10-channel instrument to validate the electrical parameters of supercapacitors and batteries with absolute accuracy. The system provides a rapid 1ms sampling rate and ensures a seamless transition between charging and discharging states. Consequently, your laboratory achieves reliable data for cycle life, energy conversion efficiency, and internal resistance without signal distortion.

Instead of managing multiple single-channel units, your team gains a centralized analytical advantage with the N8130 series. The tester fully supports international standards such as IEC62391 and QC/T741. Therefore, you can accurately perform six-step method testing to meet global quality requirements for automotive and industrial grade components.

NGI N8130A-06100 Technical Advantages

This tester packs professional-grade features for demanding energy storage research. It offers a current range up to 10A and a voltage range of 0-6V across 10 independent channels. Furthermore, the unit supports multiple DCIR test methods, including multi-pulse and single-pulse modes. This flexibility allows technicians to capture the physical characteristics of supercapacitors during repeated charging cycles to extract precise attenuation curves.

The N8130A-06100 also features a high-performance four-wire system sense. This design directly acquires voltage at the supercapacitor terminals to eliminate voltage drops in the leads. Additionally, the unit includes power limit circuits and high-speed hardware protection to prevent damage during high-current testing. The standard LAN interface ensures seamless communication with the customized PC application software for data storage and analysis.

Modern Laboratory Integration

Modern testing facilities require robust connectivity and high-speed data export capabilities. Therefore, the N8130 series supports full customization of test files according to your specific procedures. Technicians can export results in Excel or JPG formats for immediate inclusion in quality reports. The unit also features LED channel status indicators for real-time monitoring on the production floor.

When your project demands a reliable, multi-channel supercapacitor tester, the NGI N8130A-06100 stands out as the premier choice. Stop settling for low-sampling tools that miss critical discharge data. Contact Nanotech TMI today to request a technical datasheet or a custom quotation for your battery lab. Trust Nanotech TMI for all your NGI and high-precision Supercapacitor Test Equipment requirements!
