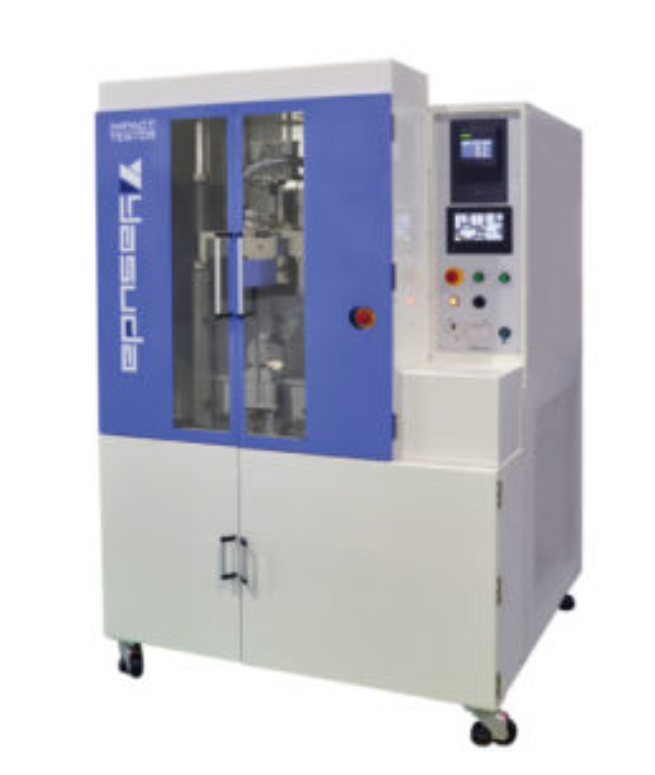

No.268 Universal Impact Tester
No.268 Universal Impact Tester
| Specifications are subject to change without notice. | |
| Temperature Range | -70 °C to 80 °C (Refrigerator) |
| Hammer | Please consult. |
| Anvil | Automatic Specimen Setting Device, Rejection Device for Tested Specimens |
| Test Specimens | 70 pcs × 3 Cassettes (Total 210 pcs) *When Specimen size is W10 × T4 × L80 mm |
| Software | Windows Compatible |
| Option | Specimen Size Measuring Device |
| Power Source | AC 200 V, 3-Phase, 30 A, 50/60 Hz *Power consumption differs according to options. |
| Air Source | 0.5 MPa or More |
| Dimensions/ Weight (Approx.) | W1,300 × D1,460 × H1,970 mm、900 kg |
Description
- This pendulum type Charpy impact tester can automatically conduct the test cycle, and is capable of testing at extremely low temperatures (as low as -70°C).
- Test conditions are inputted via touch screen and a maximum of 210 specimens can be tested continuously.
- Due to the high capability of the refrigerating system, it is both time and cost efficient when compared to any other model.
