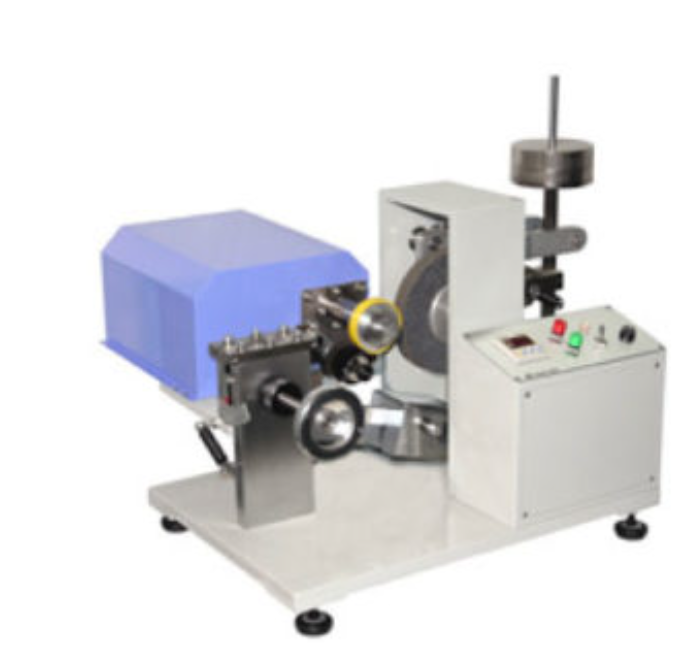

No.152 Akrin rubber abrasion tester
No.152 Akrin rubber abrasion tester
| Specifications are subject to change without notice. | |
| Specimen | φ63.5 ± 0.5 mm, T12.7 ± 0.5 mm, φ12.7 ± 0.1 mm |
| Specimen Rotation speed | 250 ± 5 rpm |
| Inclination Angle | 0 to 30° (Normal: 15°) |
| Test Load | 27.0N (2.75kgf), 44.1N (4.50kgf) |
| Option | Suction Device (Vacuum Cleaner) |
| Power source | AC 100 V, 1-phase, 10 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W600 × D420 × H580 mm/ 77 kg |
Description
- This tester is to evaluate the abrasion resistance of vulcanized rubber and thermoplastic rubber.
- By pressing the rotating circular test specimen at a certain test load to the circumference surface of the abrading wheel, the operator is to acquire the abrading mass of the test specimen.
- The test specimen will usually be tires and shoe soles.
