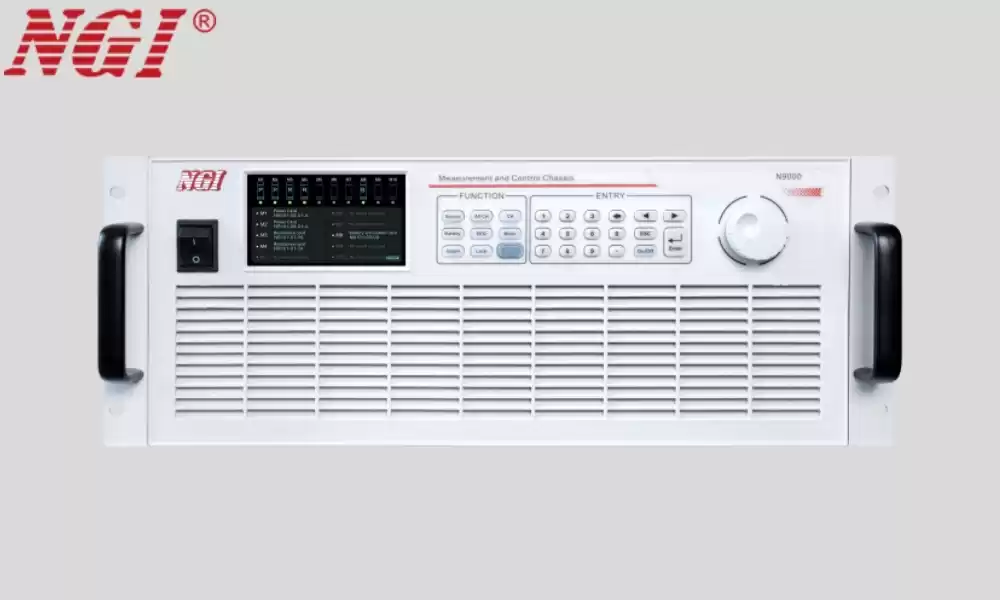

N9000 BMS Testing Modular Battery Simulator(12CH/24CH/36CH)

Description

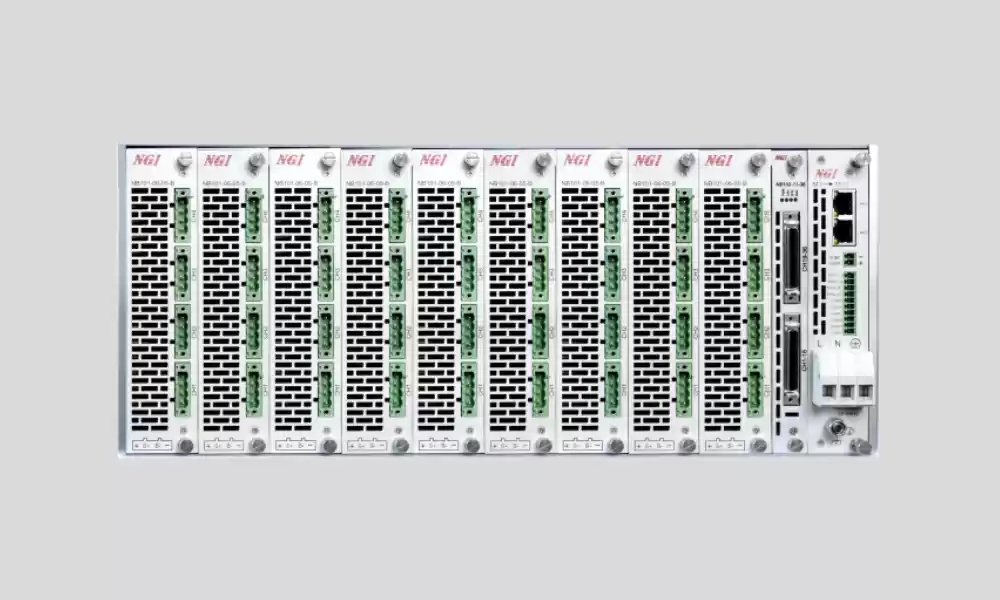

The NGI N9000 BMS Testing Modular Battery Simulator serves as an ultra-high integration platform for advanced power measurement and control. Engineers utilize this 4U standard chassis to perform high-speed, synchronous testing on Battery Management Systems (BMS) and AFE chips. The system supports up to 10 measurement and control modules, providing an isolated and flexible environment for complex automated test scenarios. Consequently, your laboratory achieves unparalleled data throughput and testing integrity for electric vehicle and energy storage applications.

Instead of managing separate instruments, your team gains a centralized analytical advantage with the N9000 platform. The chassis integrates battery simulation, temperature simulation, and programmable power modules into a single 19-inch width frame. Therefore, you can simulate up to 36 channels of independent battery cells or resistive sensors with extreme precision.

NGI N9000 Series Technical Advantages

This modular simulator packs professional-grade features for demanding HIL (Hardware-in-the-Loop) test systems. It utilizes the NB101 series modules to deliver dual-quadrant programmable battery simulation with 0.1mV voltage accuracy. Furthermore, the system handles μA-level current measurements, ensuring your technicians capture even the smallest parasitic drains during standby tests. The N9000 platform also supports SOC simulation, sequence testing, and fault simulation to replicate real-world battery failure conditions.

The platform also integrates the NB102 series resistance modules, offering a broad range from 0Ω to 11.11MΩ. This modular flexibility allows for the simultaneous simulation of NTC resistors and various resistive sensors across 36 channels. Additionally, the unit features high-speed hardware synchronous triggering. This ensures multi-module synchronization within ≤200μs, which is critical for high-integrity automated measurement.

Modern Laboratory Integration

Modern testing facilities require robust communication and seamless network integration. Therefore, the N9000 series supports Gigabit LAN and CANFD communication control. Technicians can import DBC files directly to simplify the integration of automotive communication protocols. The system also includes a dual LAN interface to support local and remote control simultaneously.

When your project demands a high-power, modular battery simulator, the NGI N9000 stands out as the ultimate choice. Stop settling for low-synchronization tools that compromise your HIL test results. Contact nanotech-tmi today to request a technical datasheet or a custom modular quotation for your laboratory. Trust nanotech-tmi for all your NGI and high-precision BMS testing requirements!
