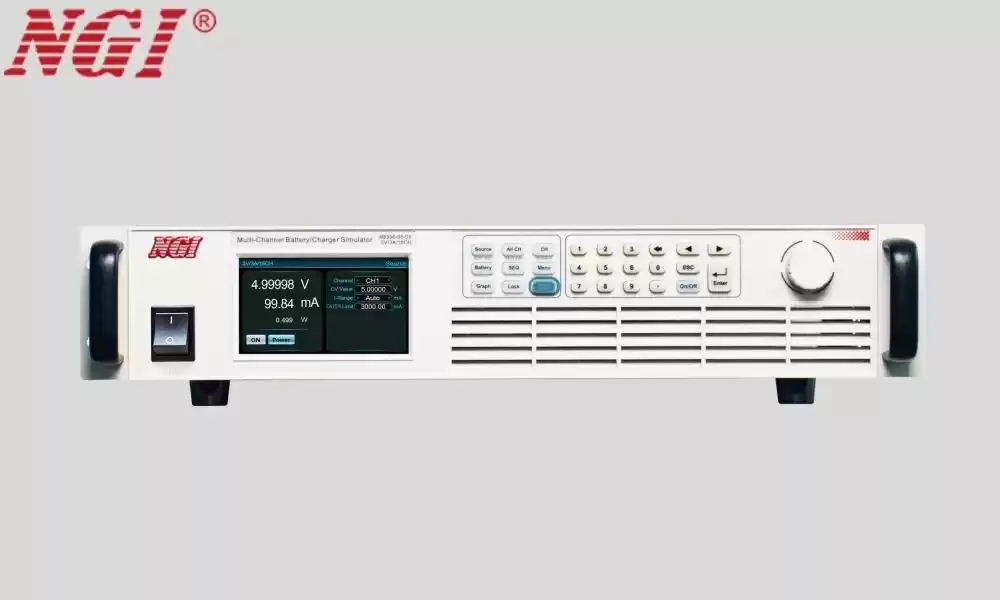

N8336 Ultra-high Accuracy Battery Simulator (16CH)
N8336 Ultra-high Accuracy Battery Simulator (16CH)
●Voltage range: 0~5V/0~6V
●Current range: 0~1A/0~3A
●Voltage accuracy up to 1: 60,000
●nA level current measurement
●Single device up to 16 channels
●Supporting SOC test, SEQ test, real-time curve, etc.
●16-channel communication response time ≤10ms
●LAN port,RS485 interface,CAN interface
Description
The NGI N8336 Ultra-high Accuracy Battery Simulator (16CH) delivers an elite, multi-channel solution for high-precision battery testing. Engineers utilize this programmable instrument to simulate 16 independent battery cells within a single 2U chassis. This model provides isolated channels that allow for easy series connection to replicate large battery pack configurations. Consequently, your facility gains a highly reliable platform for testing BMS/CMS and portable consumer electronics with absolute accuracy.
Instead of managing multiple single-channel units, your team achieves maximum test efficiency with the N8336. The simulator supports nA-level current measurements and provides an ultra-high voltage accuracy of 1/60,000. Therefore, you can accurately capture the standby power consumption of sensitive micro-components during every test cycle.
NGI N8336 Technical Advantages
This battery simulator packs professional-grade features for demanding R&D environments. It supports multiple operation modes, including Source mode, Charge mode, and SOC test mode. Furthermore, the unit delivers an ultra-fast transient response without voltage overshoot. This feature protects your devices under test (DUT) from surge damage while simulating real-world battery dynamic behaviors.
The N8336 also features built-in SEQ (sequence) testing and real-time curve plotting. This functionality allows technicians to automate complex discharge cycles and visualize data trends instantly. Additionally, the standard application software provides a user-friendly interface for managing all 16 channels simultaneously. The unit utilizes a standard 19-inch 2U size to maximize your laboratory’s rack space.
Modern Laboratory Integration

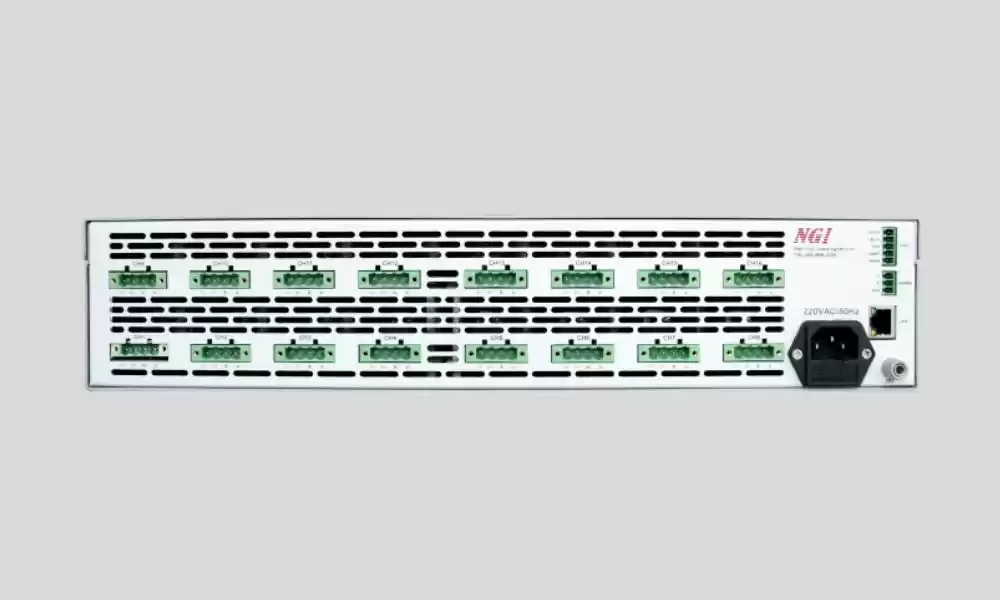

Modern testing facilities require robust connectivity and high-speed communication. Therefore, the N8336 series includes standard LAN, RS485, and CAN interfaces. It offers a 16-channel communication response time of ≤10ms, ensuring real-time control during automated testing. Technicians can also perform local operations using the front-panel controls or utilize the secondary LAN interface for remote network management.
When your project demands an ultra-high accuracy battery simulation system, the N8336 stands out as the premier choice. Stop settling for low-precision tools that delay your component characterization. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your 16-station test setup. Trust nanotech-tmi for all your NGI and ultra-high accuracy Battery Simulator requirements!
