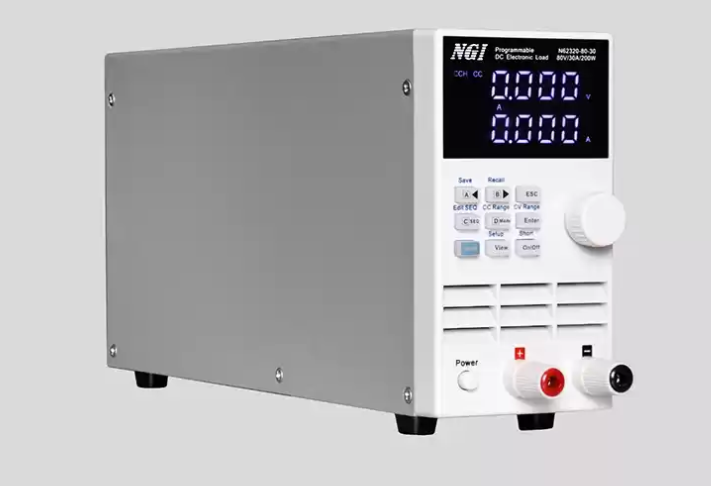

N62300 Series Portable DC Electronic Load

Description

The NGI N62300 Series Portable DC Electronic Load delivers a specialized, compact solution for precision power supply testing and benchtop repair. Engineers utilize this 200W instrument to simulate real-world energy demands on consumer electronics and low-power modules with absolute precision. This specific series addresses the unique challenge of providing professional-grade loading capabilities in a portable form factor. Consequently, your facility gains the ability to monitor electrical performance in the field or on a crowded production line without sacrificing accuracy.

Instead of struggling with bulky traditional electronic loads, your laboratory achieves a significant space advantage with the NGI N62300 series. The system offers a dual-range design for voltage, current, resistance, and power to ensure broad measurement coverage. Therefore, you can confidently validate AC/DC power supplies, DC/DC converters, and smartphone batteries with exact data points.

NGI N62300 Technical Advantages

This portable electronic load packs advanced features for demanding R&D and quality control environments. It supports four independent operation modes, including CC, CV, CP, and CR, to replicate various loading conditions. Furthermore, the unit delivers a high voltage accuracy of 0.05% and a current accuracy of 0.1% F.S. This level of precision ensures that your engineering team captures the finest electrical nuances during component validation and aging tests.

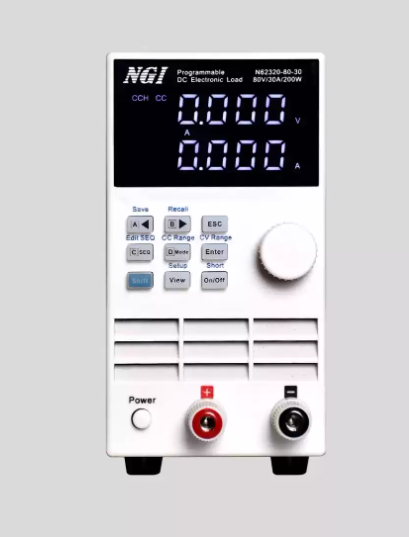

The N62300 series also features built-in safety protocols including OCP, OVP, OPP, and OTP to protect both the instrument and the device under test (DUT). Technicians can configure dynamic sequence tests (SEQ) and short-circuit simulations directly through the intuitive front-panel interface. Additionally, the unit supports the Von/Voff functionality to prevent damage during low-voltage power transitions. The high-resolution display provides real-time measurement indicators for power, current, and voltage simultaneously.

Modern Laboratory Integration

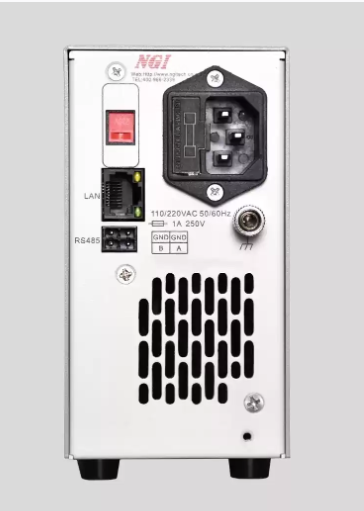

Modern facilities require robust connectivity and high-speed data management for electronics research. Therefore, the N62300 series includes standard communication ports like LAN and RS485 for easy network integration. It supports standard SCPI and Modbus-RTU protocols, allowing for straightforward secondary development in complex automated test environments. The space-saving design also allows you to mount up to six units side-by-side in a standard 4U rack to maximize your testing density.

When your project demands high-precision portable loading, the N62300 stands out as the premier choice. Stop settling for low-resolution tools that mask critical failure points in your low-power prototypes. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your facility. Trust nanotech-tmi for all your high-precision DC Electronic Load requirements!
