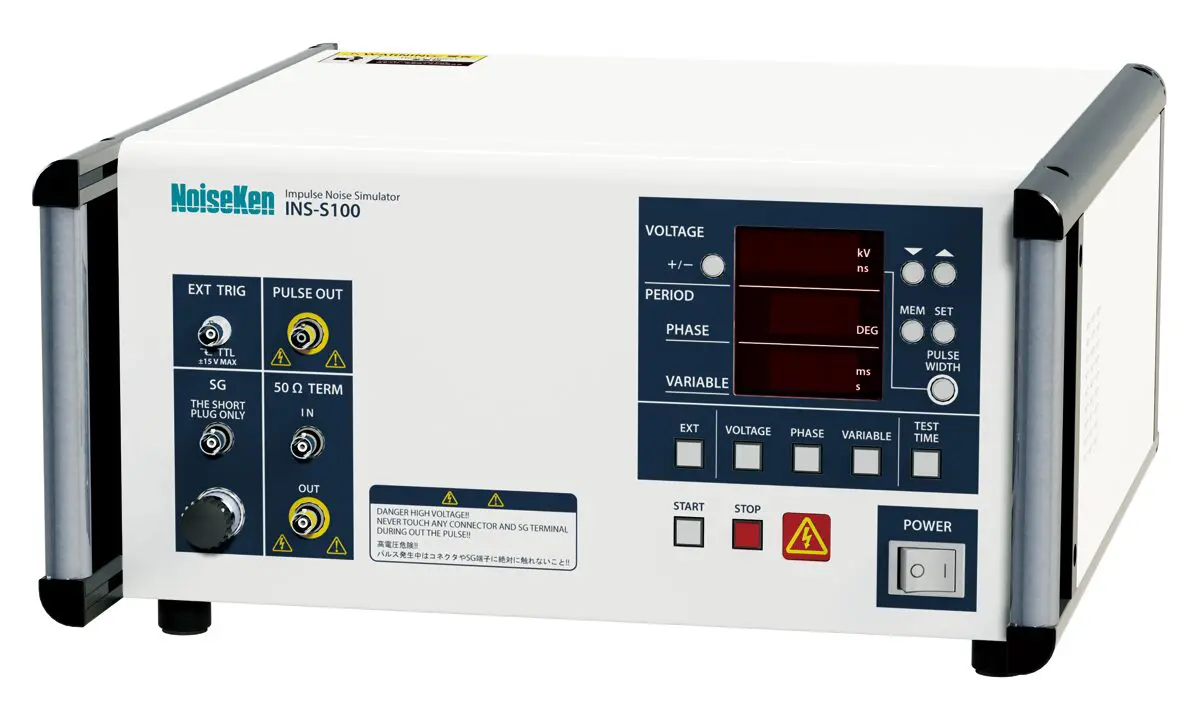

Impulse Noise Simulator (INS Series) Impulse Noise Simulator INS-S100

Parameter Specifications
Pulse output voltage 0. 05kV ～ 1. 00kV ±10％　0. 01kV step ※1
Parameters can be changed during pulse output
Pulse width 50ns±15％ 100ns ～ 1000ns ±10％　50ns step ※1
Repetition cycle 10ms ～ 999ms ±10％　1ms step
Rise time ＜ 3ns ※1
Polarity ＋ / －
Output impedance 50Ω ※2
Terminal resistance 50Ω
Pulse
repetition
modes		 VARIABLE 10ms ～ 999ms
EXT TRIG Input connector： BNC Operating cycle： > 10ms
Input signal level：TTL / open collector negative logic
Pulse width：> 1ms
1 SHOT Single pulse generation each time the 1 SHOT button is pressed.
In PHASE mode, output is synchronized to the set phase angle
Test time 1s ～ 999s ±10％　1s step
HV coaxial cable connector NMHV ※3
External control Communication function RS-232C compliant optical communication
Power supply AC100V ～ 240V ±10％　50Hz / 60Hz ±10%
Dimensions / weight （W）430×（H）199×（D）370mm
(protrusions excluded) / approx. 11kg
Accessories coaxial cable 30cm （02-00155A）：2pcs, SG short plug （02-00106A）： 1pc,
SG cable （05-00103A）： 1pc, outlet panel：1pc, AC cable：1pc,
Instruction Manual：1 volume, accessories bag：1pc
Enquire Now

Category Brand:

Description

Test noise resistance during product development!

Pulse output settings from 50V. Test noise resistance of circuit boards and low voltage components. The impulse noise simulator tests the resistance of electronic equipment by simulating quick rise-time high-frequency noise due to discharge between the contacts of switching devices and arc discharge generated from electronic motors. The impulse noise simulator INS-S100 can output pulses from 50V, allowing to evaluate the noise resistance of circuit boards and low voltage components during product development, and during analysis of malfunctions occurred in the market.

● Easy testing of circuit boards’ noise resistance due to the pulse output voltage from 50V.
● Easy noise immunity assessment due to possibility to change the output voltage during pulse output.
● “TEST TIME” setting available.
● Lightweight and compact due to no decoupling network (CDN) included.
● Test the noise resistance of signal lines using optional coupling adapters.
● Test the noise resistance of circuit boards using optional radiation probes.
