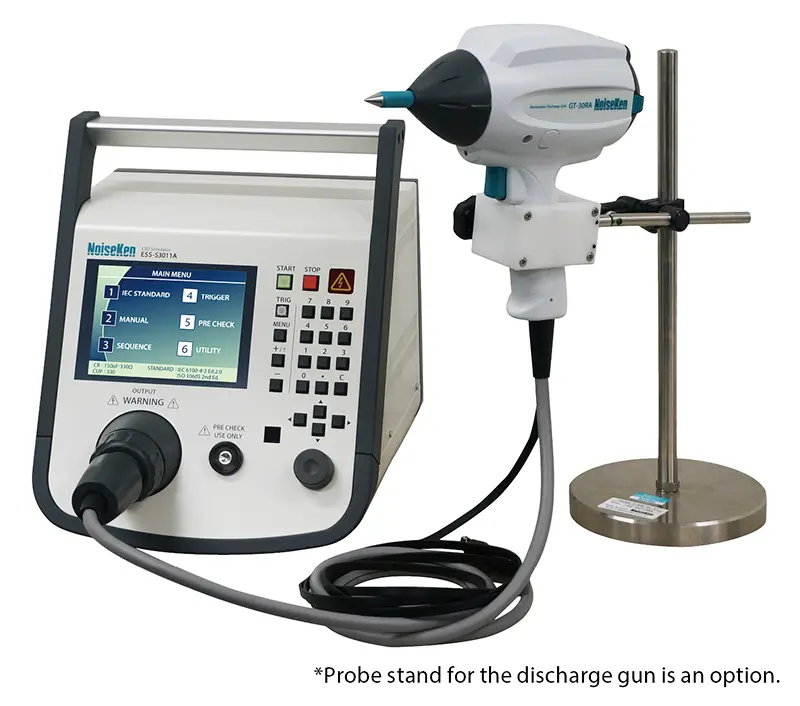

Electrostatic Discharge Simulator (ESS series) ESD Simulator ESS-S3011A & GT-30RA
Electrostatic Discharge Simulator (ESS series) ESD Simulator ESS-S3011A & GT-30RA
| Parameter | Specification | |
|---|---|---|
| Polarity | Positive / Negative | |
| Output voltage | 0.20 kV ～ 30.0 kV(30.5 kV max) *0.20kV〜1.99kV ±10% 2.00kV〜30.0kV ±5% ～ 10.0 kV : 0.01 kV step ～ 30.0 kV : 0.1 kV step |
|
| Repetition cycle | 0.05s ～ 600s ±10% / Manual Set step : 0.01s (0.05 ～ 9.99s), 0.10s (10.0 ～ 600.0s) |
|
| Discharge number of times | 1 ～ 60,000 times, Preset 1 time step or continuous preset | |
| Discharge mode | Contact discharge / Air discharge | |
| Radiation level mode | NORMAL mode / EXTRA mode | |
| Trigger mode | Gun trigger / Main trigger / External trigger | |
| Operation panel | Color LCD / Push-buttons (Partially lighting) | |
| Gun holder | Standard attached (to hold the discharge gun Model GT-30RA) | |
| Radiation mode select switch | Extra / Normal switching function built-in | |
| Discharge detection | Discharge detection function in air-discharge equipped | |
| Pre-checking function | Following 3 steps function equipped (by user operation. Not the calibration but just checking) STEP1 : High voltage output checking STEP2 : Withstanding voltage checking STEP3 : Discharge relay operation checking |
|
| CR & Gun head checking | CR constant and gun head recognizable (indication to prevent a wrong combination) |
|
| “IEC STANDARD” test mode |
Contact discharge mode : 2.0 kV, 4.0 kV, 6.0 kV and 8.0 kV steps Air discharge mode : 2.0 kV, 4.0 kV, 8.0 kV and 15.0 kV steps |
|
| “MANUAL” test mode |
Contact / Air discharge mode, Arbitrary setting 0.2 kV ～ 30.0 kV Sweeping function built-in, Recordable up to 99 units |
|
| “SEQUENCE” test mode |
Enables to operate units set in MANUAL mode continuously. Max. 22 steps / 1 program and the programs recordable up to 20. |
|
| Warning lamp | Lighting at voltage output from the generator. Blinking at electro-static discharging |
|
| Charge capacitor / resistor | 150 pF±10%, 330Ω±10% (Built-in CR unit for discharge gun GT-30RA) | |
| Charge resistor in generator | 10 MΩ (Totally 53Ω in combination with 43 MΩ in discharge gun)* | |
| AUX connector | D-SUB 15 pins female connector (for connecting to patolight, automated ESD eliminator, external interlock input, external trigger input terminal) |
|
| Optical communication | Optical connector (serial interface) for connecting to PC connector | |
| Power supply / consumption | AC100 V ～ AC240 V 50 Hz / 60 Hz ±10% 75VA | |
| Dimensions | Generator : (W)392 mm x (H)312 mm x (D)295.3 mm (gun holder included) Discharge gun : (W)83.3 mm x (H)217.2 mm x (D)229.3 mm |
|
| Weight | Generator : approx. 7.5 kg (with Gun Holder) Discharge gun : approx. 1080 g (cable and connector excluded) |
Description
ESD Simulator ESS-S3011A & GT-30RA
Reliable Electrostatic Discharge Testing for Electronic Products
Electrostatic discharge (ESD) is one of the most common causes of electronic component failure. Even a small discharge can affect product performance and reliability.
The ESS-S3011A & GT-30RA ESD Simulator helps engineers evaluate the resistance of electronic devices to electrostatic discharge. It generates controlled ESD events that simulate real-world conditions, helping manufacturers improve product quality and reduce the risk of failure.
Designed for research, development, quality assurance, and compliance testing, the system delivers accurate and repeatable results for a wide range of applications.
Key Features
Accurate ESD Simulation
Generate reliable electrostatic discharge pulses to evaluate product immunity and performance.
Easy Operation
The user-friendly design allows engineers to perform tests quickly and efficiently.
Repeatable Test Results
Ensure consistent testing with stable and accurate discharge generation.
Improved Product Reliability
Identify weaknesses early and enhance product durability before production.
Wide Application Range
Suitable for electronic devices, automotive components, industrial equipment, and consumer electronics.
Benefits
The ESS-S3011A & GT-30RA helps you:
- Improve product quality
- Reduce product failures
- Increase reliability
- Support compliance testing
- Shorten development time
- Lower testing costs
Applications
- Automotive Electronics Testing
- EMC and ESD Testing
- Electronic Component Validation
- Product Development
- Quality Assurance
- Reliability Testing
- Research and Development
Why Choose the ESS-S3011A & GT-30RA?
Reliable products require reliable testing.
The ESS-S3011A & GT-30RA provides a simple and effective solution for electrostatic discharge testing. It helps engineers evaluate product performance, improve design quality, and ensure compliance with industry requirements.
Whether you are developing a new product or validating an existing design, this ESD simulator delivers dependable results and greater confidence in product reliability.
