Description

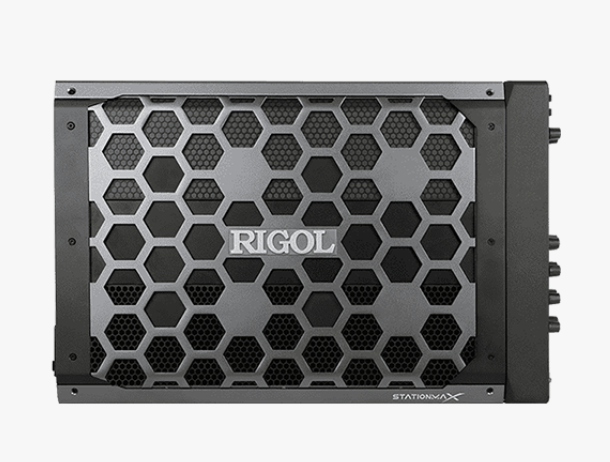

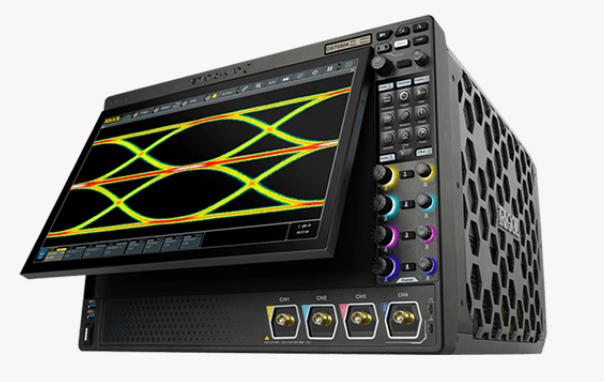

RIGOL DS70000 Series Digital Oscilloscope – Ultra-High Performance Oscilloscope for Advanced Signal Analysis

The RIGOL DS70000 Series is a premium high-performance digital oscilloscope series designed for advanced waveform analysis, high-speed signal testing, communication research, semiconductor validation, and complex electronic debugging applications. Built with RIGOL’s advanced UltraVision technology, the DS70000 Series delivers exceptional signal accuracy, ultra-fast waveform capture, deep memory capability, and powerful analysis functions for demanding laboratory and industrial environments.

Designed for engineers, researchers, communication specialists, and industrial professionals, the DS70000 Series combines cutting-edge oscilloscope technology with advanced measurement tools to improve troubleshooting efficiency and signal analysis accuracy.

Why Choose the RIGOL DS70000 Series Digital Oscilloscope?

Modern electronic systems require precise signal acquisition, ultra-fast waveform processing, and advanced debugging capabilities. The RIGOL DS70000 Series is engineered to meet these demanding requirements with professional-grade performance and advanced signal analysis functionality.

Key Features of DS70000 Series

• Ultra-high performance digital oscilloscope
• Advanced UltraVision waveform acquisition technology
• High sampling rate for precise signal capture
• Deep memory for long-duration waveform analysis
• Fast waveform update rate
• Large high-resolution display for detailed waveform viewing
• Advanced triggering and protocol decoding functions
• Low noise architecture for improved signal accuracy
• Multiple connectivity options for remote operation
• Suitable for research, industrial testing, communication analysis, and semiconductor applications

High-Speed Signal Capture for Accurate Waveform Analysis

The RIGOL DS70000 Series delivers ultra-fast waveform acquisition and exceptional signal fidelity, helping engineers analyze high-speed electronic signals accurately.

Its advanced acquisition system helps users detect:

• Signal glitches
• Timing errors
• Voltage spikes
• Noise interference
• Transient waveform events
• Communication signal abnormalities

This makes the DS70000 Series highly suitable for advanced electronic design verification and high-speed troubleshooting applications.

Deep Memory for Long-Duration Signal Recording

The DS70000 Series features deep memory capability that allows engineers to capture long waveform sequences with excellent detail and resolution.

Benefits of Deep Memory

• Long waveform recording
• Better waveform resolution
• Improved zoom and inspection capability
• Accurate intermittent fault detection
• Enhanced signal analysis performance

This feature is especially valuable for communication systems, embedded electronics, semiconductor validation, and industrial signal analysis.

Advanced Triggering and Protocol Decoding

The RIGOL DS70000 Series includes advanced trigger modes that simplify waveform isolation and signal analysis.

Supported Trigger Functions

• Edge triggering
• Pulse width triggering
• Video triggering
• Logic triggering
• Pattern triggering
• Serial bus triggering

The oscilloscope also supports protocol decoding for popular communication interfaces, helping engineers troubleshoot systems more efficiently.

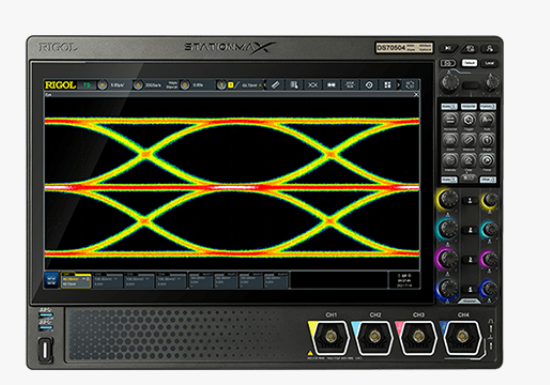

High-Resolution Display for Better Waveform Visibility

The DS70000 Series features a large high-resolution display that improves waveform visualization and measurement readability.

Users can easily monitor:

• Multiple waveforms simultaneously
• Signal timing relationships
• Trigger conditions
• Measurement values
• Protocol decoding information

Its intuitive interface enhances workflow efficiency and simplifies complex testing procedures.

Advanced Analysis Capabilities for Modern Electronics

The RIGOL DS70000 Series is optimized for advanced electronic analysis and high-speed signal debugging.

Ideal for Analyzing

• High-speed serial buses
• RF-related signals
• Embedded system communication
• Power electronics waveforms
• Semiconductor switching signals
• Communication protocols

Its advanced analysis tools help engineers improve development speed and measurement accuracy.

Connectivity and Remote Control Support

For automated laboratories and remote testing environments, the RIGOL DS70000 Series supports multiple communication interfaces.

Connectivity Features

• USB Host
• USB Device
• LAN Interface

These interfaces enable waveform transfer, remote oscilloscope control, automated testing, and PC-based monitoring using SCPI commands.

Applications of RIGOL DS70000 Series Digital Oscilloscope

The DS70000 Series is widely used across research laboratories, semiconductor industries, communication system development, and industrial testing environments.

Common Applications

High-Speed Digital Design

Analyze high-frequency and high-speed electronic signals.

Communication System Testing

Evaluate RF and communication-related waveforms.

Semiconductor Validation

Verify IC performance and signal integrity.

Embedded System Debugging

Debug FPGA systems, processors, and IoT devices.

Research and Development

Perform advanced waveform analysis and prototype validation.

Industrial Electronics Testing

Troubleshoot complex industrial electronic systems.

Professional Design with Reliable Performance

The RIGOL DS70000 Series combines professional laboratory-grade functionality with reliable long-term performance. Its durable construction ensures stable operation in demanding research, industrial, and production environments.

Conclusion

The RIGOL DS70000 Series is a powerful and advanced oscilloscope solution designed for high-speed waveform analysis, semiconductor validation, communication testing, and industrial electronics applications. With ultra-fast signal acquisition, deep memory capability, advanced triggering, and professional analysis tools, it delivers exceptional performance for engineers, researchers, and industrial professionals.

Its combination of precision, reliability, and advanced functionality makes the DS70000 Series an ideal choice for modern laboratories, communication development, semiconductor testing, and complex electronic troubleshooting
