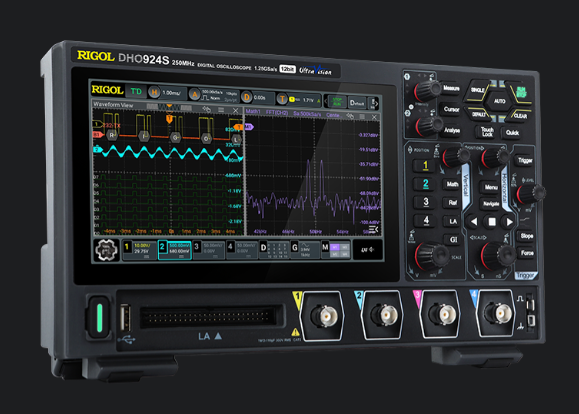

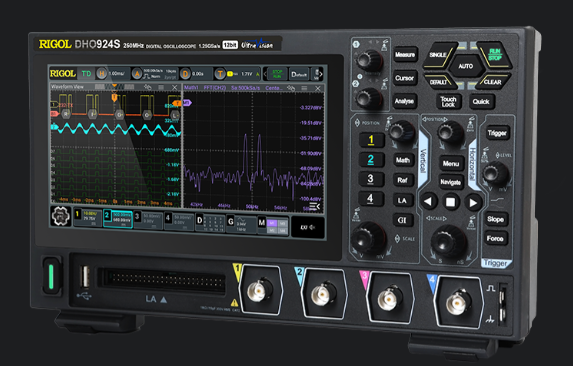

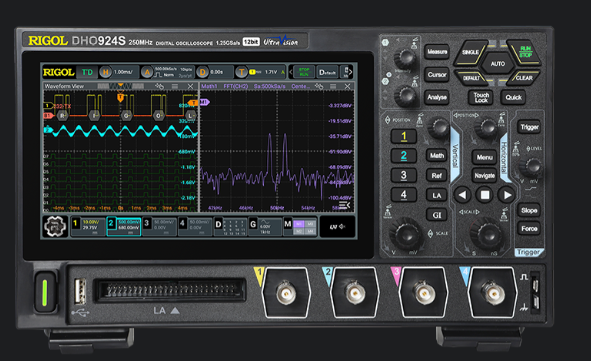

Rigol DHO900 Series 12-bit Digital Oscilloscope

Description

The Rigol DHO900 Series digital oscilloscope delivers an exceptionally powerful, high-resolution analytical solution for engineers and field technicians requiring precise signal fidelity in an ultra-portable chassis. Embedded developers and automotive electronics specialists utilize this versatile instrument to capture incredibly subtle waveform anomalies that traditional 8-bit scopes completely miss. This specific series addresses the critical industrial requirement for capturing low-voltage micro-signals while simultaneously providing robust logic analysis. Consequently, your engineering team gains the ability to perform highly accurate power supply ripple measurements and complex mixed-signal validations straight from their lab bench or out in the field.

Instead of relying on heavy, outdated benchtop equipment, your facility achieves a massive technical advantage with the Rigol DHO900 Series. Built upon Rigol’s proprietary “Centaurus” chipset architecture, the system provides true 12-bit hardware vertical resolution alongside a deep 50 Mpts memory depth. The series features four distinct configurations to perfectly match your exact testing bandwidth and signal generation requirements:

Therefore, you can confidently utilize the standard models for precise everyday decoding, or deploy the advanced “S” models to generate custom excitation signals and perform rigorous loop response (Bode plot) analysis on complex power architectures without purchasing separate equipment.

Rigol DHO900 Series Technical Advantages

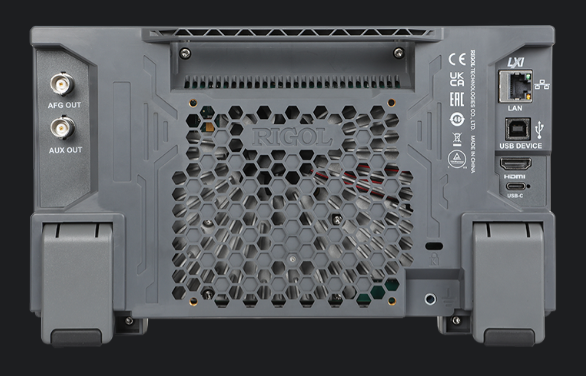

This next-generation digital oscilloscope packs premium analytical capabilities into a chassis comparable in size to a standard tablet. The instrument features a vibrant 7-inch high-definition touchscreen that supports intuitive multi-touch gestures, alongside standard HDMI output for easy external monitor viewing. Furthermore, the innovative USB Type-C power interface allows engineers to power the oscilloscope using a standard portable power bank, making it the ultimate tool for on-site diagnostics and remote industrial troubleshooting.

Modern electronics laboratories require seamless data logging and rapid signal analysis. Therefore, the Rigol DHO900 Series includes an impressive waveform capture rate of up to 1,000,000 wfms/s (in UltraAcquire Mode), ensuring you never miss infrequent glitches or transient spikes during extended testing cycles.

When your project demands absolute signal clarity and unmatched portability, the Rigol DHO900 Series stands out as the premier choice. Stop allowing 8-bit quantization errors to blindside your development cycle. Contact nanotech-tmi today to request a comprehensive technical datasheet or a custom quotation for your preferred bandwidth configuration. Trust nanotech-tmi for all your high-precision Electronics Test Solution requirements!
