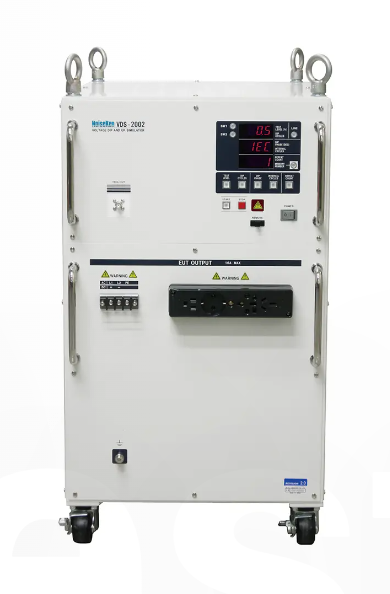

Voltage Dip & Swell Simulator VDS-2002

Parameter Specification
Compliant Standard IEC 61000-4-11 (1994) 、IEC 61000-4-11 (2004)　at Output voltage 0 to 100%
Number of Phases Single Phase
Test Modes AC/DC
Voltage Interruption test
Sensing, direct mode		 Cycle synchronous/asynchronous setting PC setting Short/Open modes selection during interruption
Cycle synchronous setting Main Unit setting Short mode during interruption
AC voltage dip and swell test
Cycle synchronous/asynchronous setting		 Cycle synchronous/asynchronous setting PC setting
Cycle synchronous setting Main Unit setting
AC voltage variations test
Sensing mode		 Cycle asynchronous setting PC setting
Main Unit setting (2s, 1s, 2s setting only)
EUT Input voltage range AC90〜264V 50/60Hz, DC0〜125V　※3
Output voltage range AC0V〜input voltage+20%, DC0V〜input voltage　AC290Vmax ※2
Output VA rating 4.224kVA　(continuous)
Output current capability AC 100% of input voltage 16Arms　(continuous)
80% of input voltage 20Arms　（<5S）
70% of input voltage 23Arms　（<5S）
40% of input voltage 40Arms　（<5S）
DC 16A　(continuous)
MAX Output current capability AC100〜120V 250A peak Output voltage 100%, <10ms in direct mode
AC220〜240V 500A peak Output voltage 100%, <10ms in direct mode
Load regulated Output voltage variation 100% of input voltage 0 –16 Arms <5%
70% of input voltage 0 –23 Arms <5%
70% of input voltage 0 –23 Arms <5%
100% of input voltage 0 –40 Arms <5%
Overshoot / undershoot <5%　100 ohm loaded in the Sensing Mode
Rise time / fall time 1〜5μs　100 ohm loaded



Parameter Specification
BASE VOLTAGE Percent Setting PC setting (4%)〜120%　percentage with a minimum value of 10V ※1 ※2
main unit setting 100%　※1
Voltage Setting PC setting 10〜290V　(0V〜input voltage+20%)　5Vstep　※2
arbitrary setting 1V step
Accuracy ±5V　Output current 0 to 16A
TEST LEVEL Percent Setting PC setting Short/Open selectable for 0% 0〜120%　※1
main unit setting Short/Open selectable for 0% 0, 40, 70, 80, 120%　5V step ※1
Voltage Setting PC setting Short/Open selectable for 0% 0〜290V
(0V〜5V step+20%)　5V step　※2　5V step
Accuracy ±5V　Output current 0 to 16A
REPEAT COUNT No. of Events setting PC setting Output current 0 to 16A
main unit setting 1, 3, 5, 10, 30, 50, 100、or continuous(Cnt)　8 steps
INTERVAL CYCLES CYCLE
Setting Synchronous PC setting 0.5〜5000.5 CYCLE　0.5 CYCLE steps
main unit setting 1, 3, 5, 10, 30, 50, 100, 300, 500 CYCLE、and 10s　10 steps
s Setting Synchronous PC setting 1〜100s　1s steps
ms Setting Asynchronous 8.3〜100000.0ms(100s)　0.1ms steps
s Setting Asynchronous 1〜36000s(10h)　1s steps
DIP CYCLES CYCLE
Setting Synchronous PC setting 0.01〜5000 CYCLE　0.01 CYCLE steps
main unit setting 0.5, 1, 5, 10, 12, 25, 30, 50, 250, 300 CYCLE　10steps
ms Setting Synchronous PC setting 0.1〜100000.0ms (100s)　0.1ms steps
ms Setting Asynchronous 0.1〜100000.0ms (100s)　0.1ms steps
s Setting Asynchronous 1〜36000s(10h)　1s steps



Parameter Specification
DIP PHASE
(voltage interruptions, dip starting phase)		 PC setting Synchronous PC setting 0〜360°　1° steps
main unit setting 0, 45, 90, 135, 180, 225, 270,
315, 360°　9 steps　(45° steps)
PC setting PC setting 0〜19.9ms　0.1ms steps　50Hz
0〜16.6ms　0.1ms steps　60Hz
Voltage Variations Test PC setting Asynchronous PC setting 0.1s〜10s　0.1s steps　output voltage 0〜120%
Memory capacity PC setting Up to 10 tests can be programmed and stored as long as the recording media such as PC HD, FD, etc. allow.
main unit setting 5 tests
Input voltage from EUT AC100〜240V±10%
50/60Hz
Interface Optical interface Optional optical converter RS-232 or USB selection
Operating temperature 15〜35℃
Operating humidity 25〜75%R.H.
External dimensions / Weight (W)430 x (H)745 x (D)600mm(excluding protrusions) / approx.150kg
Power consumption 120VA　(AC100〜240V 50/60Hz)



※1 : percent against input voltage
※2 : not compliant to IEC 61000-4-11(1994) and IEC 61000-4-11 Ed2 (2004) , ed.3 (2020) Standards when voltage output is >100%
※3 : The input voltage must be free of distortion and voltage variations.

Enquire Now

Category Brand:

Description

Used to evaluate performance such as malfunctions and functional deterioration due to power supply voltage fluctuations in electronic and electrical equipment.
Simulates the phenomenon of voltage fluctuations and momentary power failures in commercial power supplies (AC100/200V) and evaluates the resistance of electronic equipment.
In addition to the requirements of the international standard IEC61000-4-11, it is tested in all industries as a tolerance evaluation against voltage fluctuations and instantaneous interruptions for electronic equipment.VDS-2002
