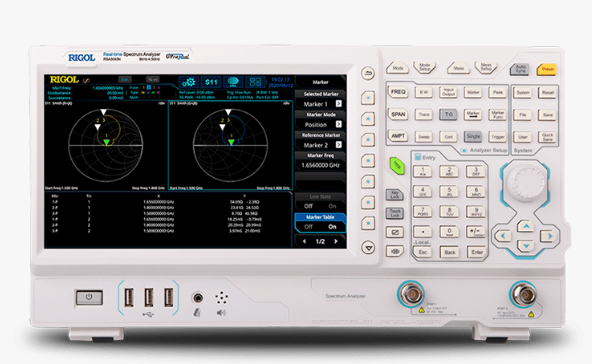

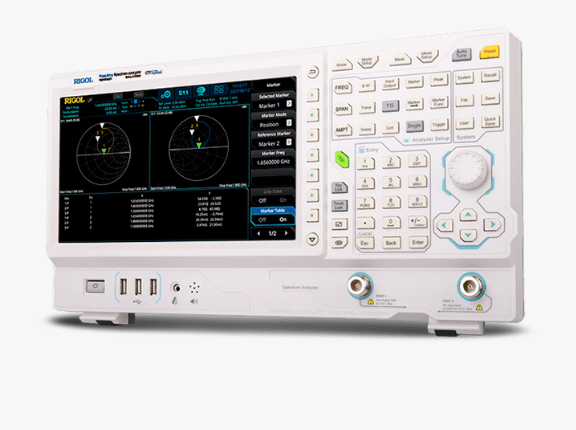

Spectrum Analyzers RSA3000 Series – Advanced Real-Time Spectrum Analyzers for RF Signal Analysis

The RIGOL RSA3000 Series Spectrum Analyzers are high-performance real-time spectrum analyzers designed for RF engineers, communication system developers, EMC testing professionals, industrial automation specialists, researchers, and educational laboratories that require accurate frequency analysis and advanced signal measurement capabilities. Combining real-time spectrum analysis, excellent RF performance, low phase noise, and powerful measurement tools, the RSA3000 Series delivers reliable solutions for modern wireless communication and electronic testing applications.

The RSA3000 Series supports frequency ranges up to 3 GHz and 6.5 GHz depending on the model, making it ideal for RF signal analysis, EMI pre-compliance testing, wireless communication debugging, radar signal analysis, IoT device development, spectrum monitoring, and electronic manufacturing applications. Its advanced real-time processing capability, compact design, and intuitive touchscreen interface make it suitable for both laboratory and field testing environments.

Key Features of the RIGOL RSA3000 Series Spectrum Analyzers

• Frequency range options up to 3 GHz and 6.5 GHz
• Real-time spectrum analysis capability
• Real-time bandwidth up to 40 MHz
• Displayed Average Noise Level (DANL) as low as -161 dBm
• Excellent phase noise performance
• Fast sweep speed for efficient RF analysis
• Advanced EMI measurement functions
• Optional tracking generator support
• Multi-touch capacitive touchscreen display
• Multiple RF measurement and modulation analysis tools
• USB, LAN, HDMI, and remote connectivity interfaces
• Compact and portable benchtop design
• High frequency stability and measurement accuracy

The RSA3000 Series combines advanced RF analysis capability with modern user-friendly operation for demanding wireless and electronic testing applications.

Real-Time Spectrum Analysis for Advanced RF Testing

One of the major advantages of the RIGOL RSA3000 Series is its real-time spectrum analysis capability. Unlike conventional swept spectrum analyzers, the RSA3000 Series continuously monitors the RF spectrum and captures transient events, intermittent interference, and rapidly changing signals that are difficult to detect using standard analyzers.

This real-time analysis capability is highly useful for:

• Wireless communication debugging
• RF interference analysis
• Spectrum monitoring
• Radar signal analysis
• EMI troubleshooting
• IoT device testing
• Signal integrity verification

The advanced real-time processing engine helps engineers identify signal anomalies faster and improves troubleshooting efficiency during RF system development.

Excellent RF Performance and Low Noise Floor

The RSA3000 Series delivers excellent RF measurement performance with low displayed average noise level, high dynamic range, and stable signal analysis capability.

Key RF performance advantages include:

• Low DANL for weak signal detection
• Excellent phase noise performance
• Accurate amplitude measurements
• High frequency stability
• Wide dynamic range
• Improved signal clarity

These features make the RSA3000 Series suitable for:

• RF circuit design
• Communication system testing
• Oscillator analysis
• Receiver sensitivity testing
• Transmitter evaluation
• Low-power signal measurement

Its advanced RF front-end architecture enables accurate and reliable signal measurements in complex RF environments.

Advanced EMI Pre-Compliance Testing Capability

The RSA3000 Series includes advanced EMI testing functions that simplify electromagnetic interference analysis and pre-compliance testing during product development.

Built-in EMI features support:

• EMI pre-compliance testing
• Conducted emission measurements
• Radiated emission analysis
• Peak, quasi-peak, and average detection
• EMI limit line comparison
• RF interference troubleshooting

These capabilities help engineers identify EMC-related issues early in the design process, reducing development time and improving product reliability.

Tracking Generator for Frequency Response Analysis

Selected RSA3000 Series models include a built-in tracking generator, enabling frequency response testing and RF component characterization without requiring additional instruments.

The tracking generator is useful for:

• Filter testing
• Cable loss measurement
• Amplifier response analysis
• RF component characterization
• Antenna testing
• Frequency response measurements

This integrated functionality improves testing efficiency while reducing laboratory equipment costs.

Advanced RF Measurement and Signal Analysis Functions

The RIGOL RSA3000 Series includes multiple advanced RF measurement and signal analysis tools that improve testing accuracy and simplify troubleshooting operations.

Key analysis functions include:

• Channel power measurement
• Occupied bandwidth analysis
• Adjacent channel power ratio (ACPR)
• Harmonic distortion analysis
• Frequency counter functionality
• Power measurement analysis
• Marker and peak search functions
• Modulation analysis support

These advanced functions support efficient analysis of wireless communication systems, RF modules, industrial electronics, and embedded RF applications.

Modern Touchscreen Interface and User-Friendly Operation

The RSA3000 Series features a responsive capacitive multi-touch display with an intuitive graphical user interface that simplifies spectrum analysis and improves workflow efficiency.

The user-friendly interface provides:

• Clear spectrum visualization
• Fast parameter configuration
• Efficient marker operation
• Easy navigation through measurement tools
• Simplified signal analysis workflows

Its compact benchtop design makes the analyzer suitable for:

• Research laboratories
• Educational institutions
• Production testing environments
• Industrial maintenance
• Field service operations

The ergonomic design ensures comfortable operation during long testing sessions.

Applications of the RIGOL RSA3000 Series Spectrum Analyzers

The RSA3000 Series is widely used across multiple RF and electronic testing applications, including:

• RF signal analysis
• Wireless communication testing
• EMI and EMC pre-compliance testing
• Spectrum monitoring
• Radar signal analysis
• IoT device development
• Antenna testing
• RF component characterization
• Industrial electronics troubleshooting
• Educational and research laboratories

Its combination of real-time spectrum analysis, advanced RF measurement capability, and low-noise performance makes it highly suitable for modern wireless and RF engineering applications.

Why Choose the RIGOL RSA3000 Series?

The RIGOL RSA3000 Series offers an excellent balance of RF performance, real-time signal analysis capability, advanced EMI testing functions, and affordability. With low phase noise, high dynamic range, real-time spectrum analysis, tracking generator support, and powerful RF measurement tools, the RSA3000 Series delivers professional-grade spectrum analysis performance for demanding electronic testing applications.

Whether you are performing RF debugging, communication testing, EMI analysis, spectrum monitoring, or wireless product development, the RSA3000 Series provides accurate measurements, stable performance, and efficient troubleshooting capabilities for modern RF engineering environments.
