N61100 Series Multi-channel DC Electronic Load | nanotech-tmi

Description

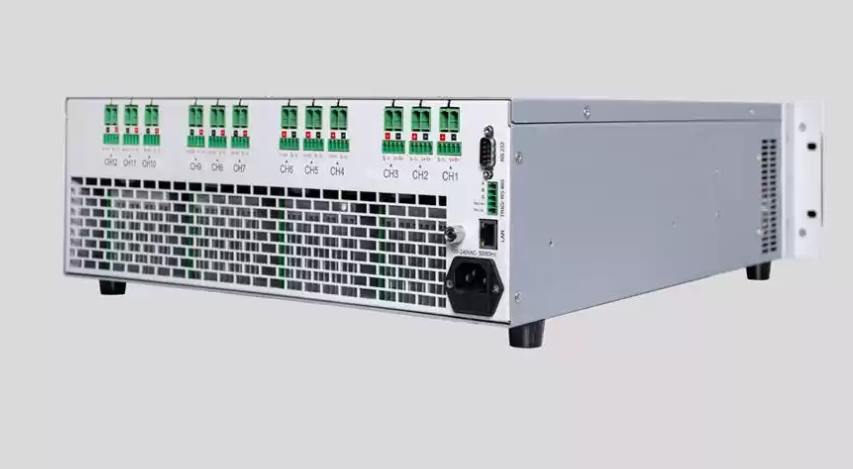

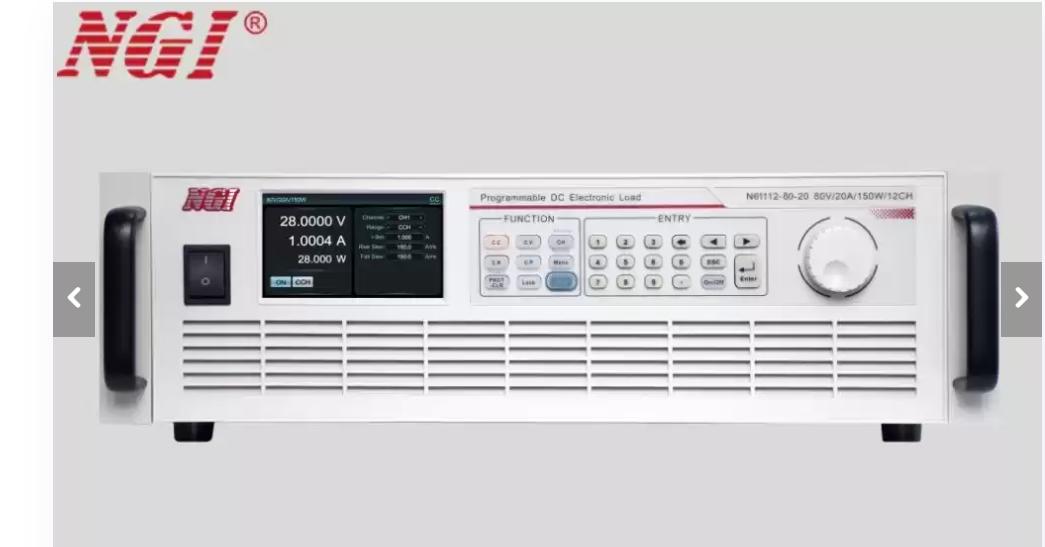

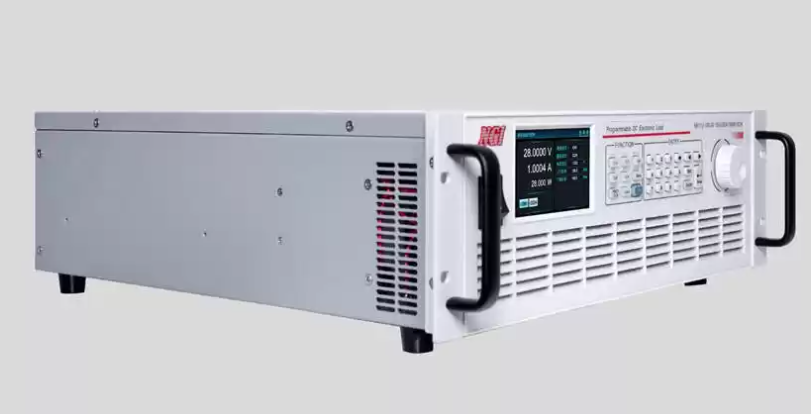

The NGI N61100 Series Multi-channel DC Electronic Load delivers a specialized, high-density solution for precision power supply testing and industrial quality control. Engineers utilize this highly integrated instrument to consolidate their testing environment by replacing up to twelve traditional single-channel loads with a single 3U unit. This model addresses the unique challenge of maintaining electrical isolation and high-speed accuracy across multiple channels simultaneously. Consequently, your laboratory gains massive space savings while achieving superior measurement reliability.

Instead of struggling with bulky equipment that litters your workspace, your team achieves a streamlined analytical advantage with the NGI N61100 series. The system provides independent control for each channel, allowing for complex multi-DUT (Device Under Test) validation cycles. Therefore, you can confidently validate AC/DC converters, chargers, and automotive wiring harnesses with exact current and voltage parameters.

NGI N61100 Technical Advantages

This multi-channel electronic load packs advanced features for demanding R&D and production environments. It supports a fast communication response time of less than 10ms, allowing technicians to synchronize tests across up to 120 channels in a networked environment. Furthermore, the unit features a dual-measurement range for CC, CV, CP, and CR modes. This ensures that your engineering team captures exact data points during complex longevity and efficiency test cycles across a wide measurement range.

The N61100 series also includes a specialized LED light simulation function to test LED driving power with high accuracy. Technicians can configure equivalent circuit parameters directly to simulate real-world nonlinear loading conditions. Additionally, built-in OCP/OVP/OPP test modes provide a comprehensive toolset for evaluating device safety and protection thresholds. The standard LAN, RS232, and RS485 interfaces ensure seamless integration into modern automated test equipment (ATE) systems.

Modern Laboratory Integration

Modern facilities require robust connectivity and high-speed data management for power electronics research. Therefore, the N61100 series includes standard ports that simplify remote control and real-time monitoring. It supports the Modbus-RTU and SCPI protocols, allowing for straightforward secondary development in complex software-controlled test setups. The space-saving 3U design ensures you can mount multiple units in a standard rack to maximize your testing throughput without expanding your footprint.

When your project demands high channel density and millisecond-level response times, the NGI N61100 stands out as the premier choice. Stop settling for low-speed loads that clutter your facility and miss critical transient data. Contact nanotech-tmi today to request a technical datasheet or a custom quotation for your multi-channel test system. Trust nanotech-tmi for all your high-precision DC Electronic Load requirements!
