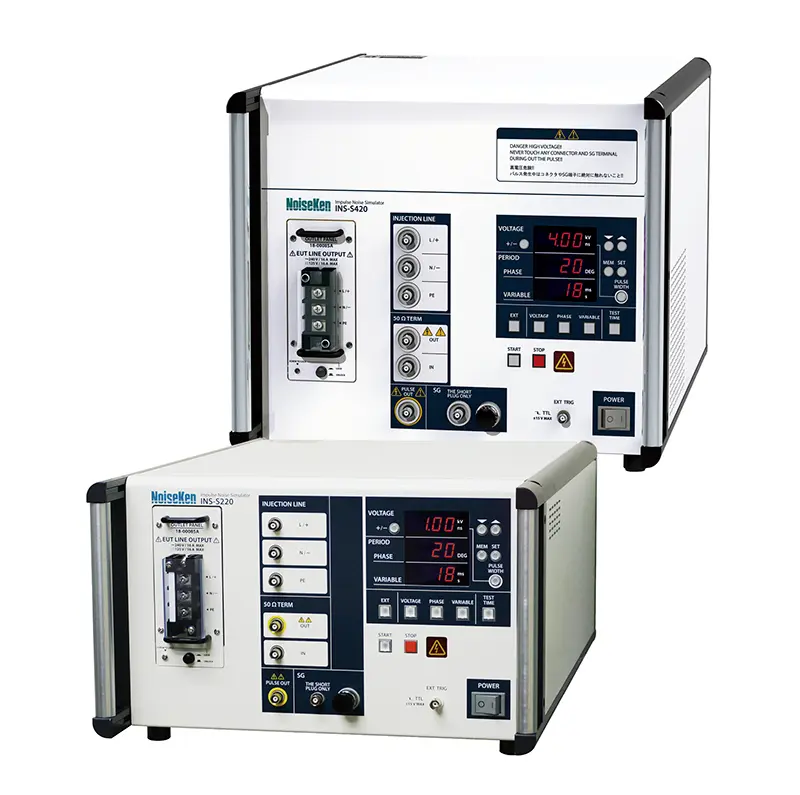

Impulse Noise Simulator (INS Series) Impulse Noise Simulator (semi-conductor type) INS-S220 / S420

Description

To solve the real trouble in the market

This Noise simulator simulates high frequency noises generated by ON/OFF switching at contact points of switches or relays, and arcs caused by electric motor, allowing to evaluate the resistibility of electric devices.
The Pulse contains wide range of frequency components and energy volume is changeable by adjusting pulse width. This allows conducting of highly-reproducible noise tests for noise troubles in the market.

• Button touch instead of coaxial cable replacing reduces pulse width setting time.
• Pulse waveform stability has improved, allowing highly-reproducible testing.
• Consumable parts reduction cut down running cost.
• Common mode/normal modes are easily switched between by a short plug.
• “Test time setting” new function simplifies test time setting.
• Wiring became easier thanks to a built-in 50Ω terminator resistor design.
• Repetition cycle became faster. Due to high repetition, malfunction occurrence rate is up and test time is shortened.(only INS-S220)
• Outlet Panel allows direct connection of EUT AC plug.(option)
• Various tests are available by using different probes and coupling clamps.(option)
• Using of external CDN allows testing to 3-phase EUTs.(option)
• Dedicated software simplifies testing with various test conditions (option, applicable to INS-S420 only)
