Electrostatic Discharge Simulator (ESS series) ESD SimulatorESS-B3011A & GT-30RA
Electrostatic Discharge Simulator (ESS series) ESD SimulatorESS-B3011A & GT-30RA
| Parameter | Specification |
|---|---|
| Model | ESS-B3011A |
| Output voltage | 0.20 kV ～ 30.0 kV ± 5% (30.5 kV max) *0.20kV ～ 1.99kV ±10% 2.00kV ～ 30.0kV ±5% ～ 10.0kV ： 0.01kV step 10.0 ～ 30.0kV ： 0.1kV step |
| Polarity | Positive / Negative |
| Repetition cycle | 0.05s ～ 9.99s ± 10%, 0.01s step / Manual |
| Discharge No. of times | 1 ～ 999 times, Preset 1 time step or continuous preset |
| Discharge mode | Contact discharge / Air discharge |
| Trigger mode | Gun trigger / Main trigger |
| Operation panel | Indicator : 5 x 7 Dot matrix LED / Operation : Push buttons (Partially lighting) |
| Radiation mode select switch | Extra / Normal switching function built-in |
| Discharge detection | Discharge detection function in air-discharge equipped. |
| Pre-checking function | High voltage output checking function (by user operation. Not the calibration but just checking) |
| CR & Gun head checking |
CR constant and gun head recognizable (to prevent the wrong combination without indicator) |
| IEC LEVEL | Contact discharge mode : 2.0 kV, 4.0 kV, 6.0 kV and 8.0 kV step |
| Switching function | Air discharge mode : 2.0 kV, 4.0 kV, 8.0 kV and 15.0 kV step |
| Warning lamp | Lighting at voltage output from the generator. Blinking at electro-static discharging |
| Charge capacitor / resistor | 150 pF ±10%, 330 Ω ± 10% (Built-in CR unit for discharge gun GT-30RA) |
| Charge resistor in generator | 10 MΩ (Totally 53 Ω in combination with 43 MΩ in discharge gun)* |
| Power supply / consumption | AC 100 V ～ AC 240 V ± 10% 50 Hz / 60 Hz 62 VA |
| Dimensions | Generator : (W)270 mm x (H)263 mm x (D)200 mm Discharge gun : (W)83.3 mm x (H)217.2 mm x (D)229.3 mm |
| Weight | Generator : Approx. 4.6 kg Discharge gun : Approx. 1080 g (excluding cable and connector) |
Description
Cost-oriented Basic model

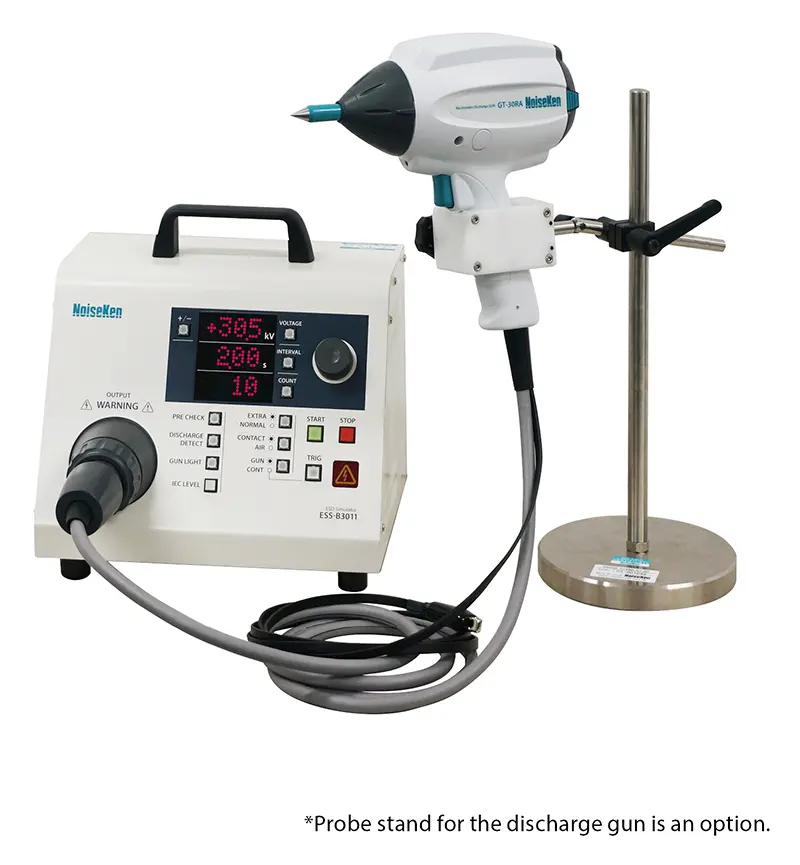

Cost-oriented basic model ESD Simulator equipped with the light weight discharge gun.
The output voltage can be selected up to max. 3
● “Pre-checking function” tfor performing a more reliable testing
● “CR constant checking function” (no indicator) to prevent incorrect unit attachment”
● “Discharge Detecting Function” to realize the air-discharge confirmation.
● “Lightest Discharge Gun in the market” to lighten the continuous operation.
● “White LED Irradiator” to facilitate the visualization of the discharging area.
● One-touch exchange of gun head and CR unit realized
* ISO 10605 compliant test performable with addition of the gun head and CR units (only with ESS-B3011A)
■Discharge output waveform (IEC Standard)
