Spectrum Analyzers RSA3000E Series – High-Performance Real-Time Spectrum Analysis for RF and EMI Testing

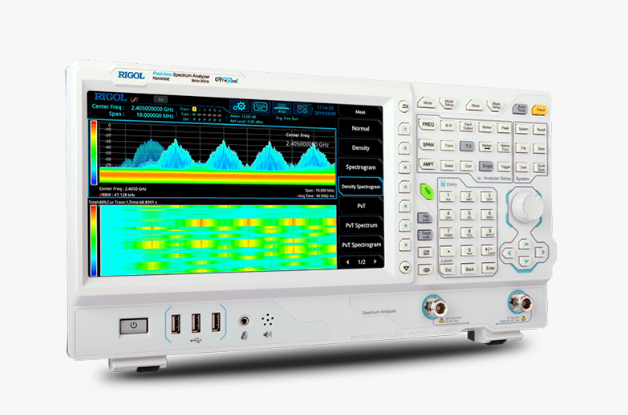

The RIGOL RSA3000E Series Spectrum Analyzers are advanced real-time spectrum analyzers designed for RF engineers, communication system developers, EMC testing professionals, educational laboratories, industrial automation specialists, and research applications that require accurate frequency analysis and high-performance signal measurement. Combining excellent RF performance, real-time spectrum analysis, low phase noise, and powerful measurement capabilities, the RSA3000E Series delivers reliable testing solutions for modern wireless and electronic systems.

The RSA3000E Series supports frequency ranges up to 3 GHz and 6.5 GHz depending on the model, making it ideal for RF signal analysis, EMI pre-compliance testing, wireless communication testing, spectrum monitoring, radar signal analysis, IoT device development, and electronic manufacturing applications. With its compact design, intuitive touchscreen interface, and advanced measurement tools, the RSA3000E Series provides professional-grade spectrum analysis performance at an affordable price.

Key Features of the RIGOL RSA3000E Series Spectrum Analyzers

• Frequency range options up to 3 GHz and 6.5 GHz
• Real-time spectrum analysis capability
• Displayed Average Noise Level (DANL) as low as -161 dBm
• Phase noise performance down to -102 dBc/Hz
• Real-time bandwidth up to 40 MHz
• Sweep time as low as 1 ms
• Multi-touch capacitive touchscreen display
• Advanced EMI measurement functions
• Standard tracking generator in selected models
• High measurement accuracy and signal stability
• Multiple modulation and signal analysis functions
• USB, LAN, HDMI, and remote control connectivity
• Compact lightweight benchtop design

The RSA3000E Series combines powerful RF analysis capability with user-friendly operation, making it suitable for both laboratory and field testing environments.

Real-Time Spectrum Analysis for Fast Signal Detection

The RIGOL RSA3000E Series features real-time spectrum analysis technology that enables engineers to capture and analyze transient RF events, intermittent interference, and rapidly changing wireless signals. Unlike conventional swept spectrum analyzers, the real-time analysis function continuously monitors the signal environment and helps identify short-duration signal anomalies that may otherwise be missed.

This capability is highly useful for:

• Wireless communication debugging
• RF interference analysis
• Spectrum monitoring
• Radar signal analysis
• EMI troubleshooting
• IoT device testing
• Signal integrity verification

The real-time analysis function significantly improves troubleshooting efficiency during RF system development and electronic testing.

Excellent RF Performance and Low Noise Floor

The RSA3000E Series delivers excellent RF performance with a low displayed average noise level and high dynamic range. The advanced RF front-end architecture provides accurate signal measurements and enhanced small-signal visibility during complex frequency analysis applications.

Key RF performance advantages include:

• Low DANL for weak signal detection
• Excellent phase noise performance
• High frequency stability
• Accurate amplitude measurements
• Wide dynamic range
• Improved signal clarity

These capabilities make the RSA3000E Series suitable for:

• RF circuit design
• Communication system testing
• Low-power signal analysis
• Oscillator measurement
• Transmitter evaluation
• Receiver sensitivity testing

The low-noise architecture helps engineers achieve more accurate and reliable RF measurements.

Advanced EMI Pre-Compliance Testing Capability

The RSA3000E Series includes advanced EMI measurement functions that simplify electromagnetic interference testing and pre-compliance analysis. Engineers can perform conducted and radiated emission measurements efficiently using built-in EMI filters, detectors, and analysis tools.

The EMI testing functionality supports:

• EMI pre-compliance testing
• Conducted emission analysis
• Radiated emission measurements
• Peak, quasi-peak, and average detection
• EMI limit line comparison
• Spectrum interference analysis

These features help engineers identify and troubleshoot electromagnetic compatibility issues during product development and validation.

Tracking Generator for Frequency Response Testing

Selected RSA3000E models include a built-in tracking generator, enabling frequency response analysis and component testing without requiring additional RF instruments.

The tracking generator is useful for:

• Filter testing
• Amplifier analysis
• Cable loss measurement
• RF component characterization
• Antenna testing
• Frequency response analysis

This integrated functionality improves laboratory efficiency and reduces overall equipment costs.

Multi-Function Signal Analysis Capability

The RSA3000E Series supports multiple signal analysis modes for modern communication and RF applications. Advanced analysis functions include:

• Spectrum analysis
• Real-time spectrum analysis
• Power measurements
• Channel power analysis
• Occupied bandwidth measurement
• Adjacent channel power ratio (ACPR)
• Harmonic distortion analysis
• Frequency counter functions

These capabilities simplify testing and troubleshooting of wireless communication systems, RF modules, industrial electronics, and embedded RF applications.

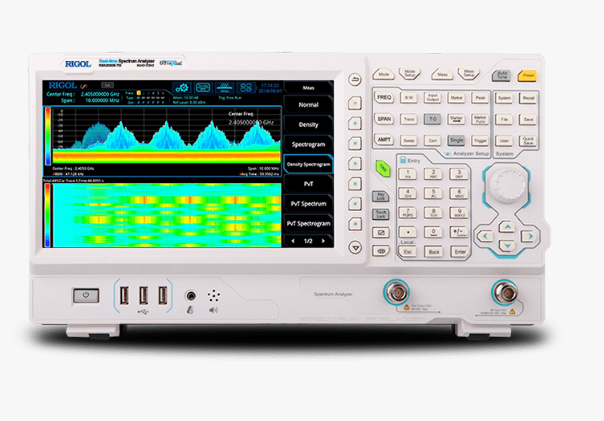

Modern Touchscreen Interface and User-Friendly Operation

The RIGOL RSA3000E Series features a responsive capacitive multi-touch display with an intuitive graphical user interface that improves measurement efficiency and simplifies instrument operation.

The user-friendly interface provides:

• Easy navigation
• Fast parameter configuration
• Clear spectrum visualization
• Efficient marker analysis
• Quick access to measurement tools
• Simplified RF troubleshooting

Its compact benchtop design makes the analyzer suitable for:

• Research laboratories
• Educational institutions
• Production testing
• Industrial maintenance
• Field service operations

The ergonomic design ensures comfortable operation during long testing sessions.

Applications of the RIGOL RSA3000E Series Spectrum Analyzers

The RSA3000E Series is widely used across multiple RF and electronic testing applications, including:

• RF signal analysis
• Wireless communication testing
• EMI and EMC pre-compliance testing
• Spectrum monitoring
• Radar signal analysis
• IoT device development
• Antenna testing
• RF component characterization
• Industrial electronics troubleshooting
• Educational and research laboratories

Its combination of real-time spectrum analysis, low noise performance, and advanced RF measurement tools makes it highly suitable for modern wireless and electronic engineering applications.

Why Choose the RIGOL RSA3000E Series?

The RIGOL RSA3000E Series offers an excellent balance of RF performance, advanced signal analysis capability, modern user interface design, and affordability. With real-time spectrum analysis, low phase noise, advanced EMI testing functions, tracking generator support, and powerful RF measurement tools, the RSA3000E Series delivers professional-grade spectrum analysis performance for demanding electronic testing applications.

Whether you are performing RF debugging, communication testing, EMI analysis, spectrum monitoring, or wireless product development, the RSA3000E Series provides accurate measurements, reliable performance, and efficient troubleshooting capabilities for modern RF engineering environments.
